Главная Каталог продукции Toolunited 17 301-02 - Thread cutting tap with reinforced shank MTH-3/8-16UNC-BC-V040

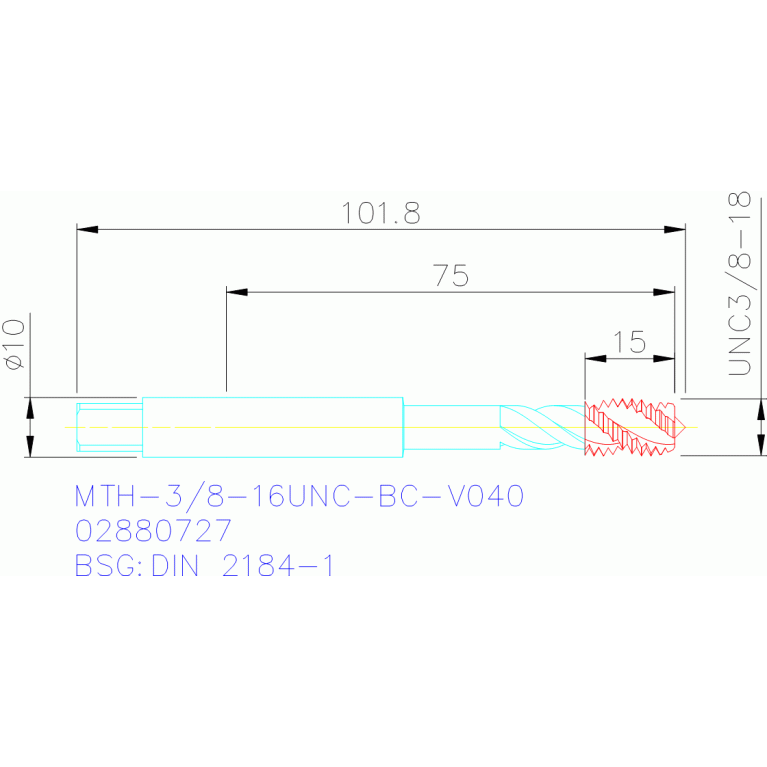

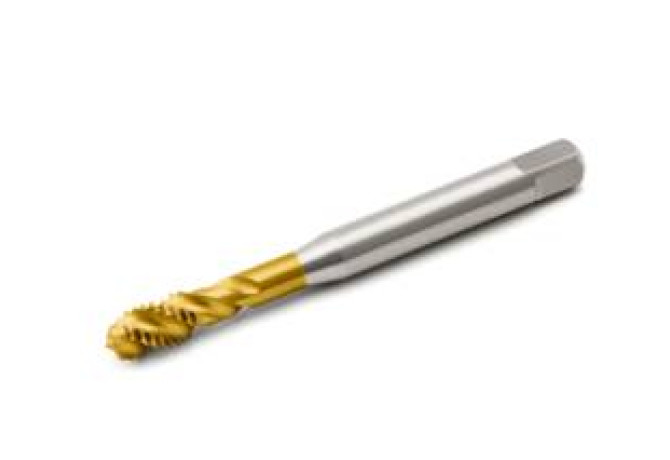

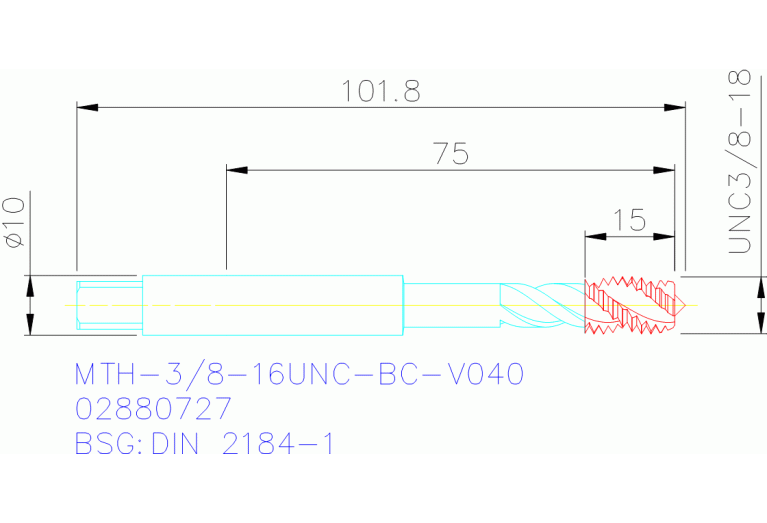

MTH-3/8-16UNC-BC-V040

MTH-3/8-16UNC-BC-V040 MTH-3/8-16UNC-BC-V040 MTH-3/8-16UNC-BC-V040 MTH-3/8-16UNC-BC-V040

MTH-3/8-16UNC-BC-V040

Seco
Артикул: 02880727
В наличии
В корзину
Описание
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL01002105
FamilyProducts
MTH-3/8-16UNC-BC-V040
FHA Flute helix angle
45 Degree
FHH Flute helix hand
R - Hand of helix right
HAND Cutting direction
R - Right
ID Technical product number
02880727
Interface codes
J6 / J61
ISO
ZYL21G1000$$$$
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
39 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03 ISO
ZYL21G1000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01002105
Name Identifying order number
MTH-3/8-16UNC-BC-V040
NOF Flute count
3
OAL Overall length
100 mm
PLCD Gate diameter
8.1 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN2184-1
TCTR Thread tolerance class
2B
TD Thread diameter
9.525 mm
TDFR Thread diameter nominal fraction
3/8 in
THFT Thread form type
UNC
THL Thread cutting part length
15 mm
THOD Thread designation
UNC3/8-16-2B
TPI Threads per inch
16 1/in
Working process
BG - Tapping
WT Weight of item
0.045 kg
