Главная Каталог продукции Toolunited 17 303-00 - End mill unspecified MRO.V.0843.0600.L.Z6.HA SCWX210

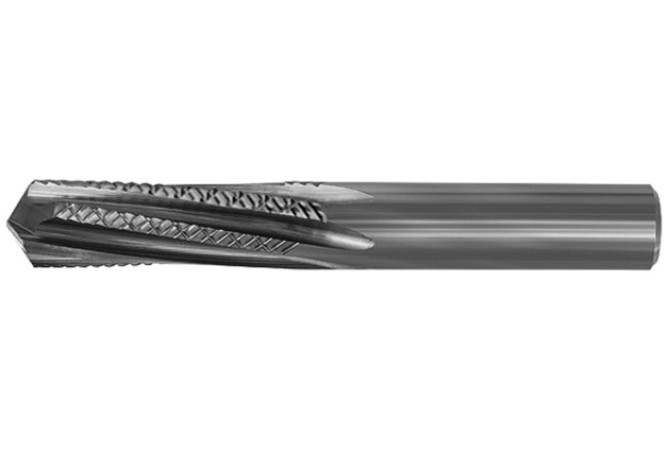

MRO.V.0843.0600.L.Z6.HA SCWX210

Артикул: W0843060300

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

22 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

CE - Ceratizit

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

6 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL00600105

FamilyProducts

Multiple milling cutters for plastics W0843-L

FHA Flute helix angle

10 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

10 Degree

GAMP Rake angle axial

15 Degree

GRDMFG Grade manufacturers designation

SCWX210

GRDPRIO Standard designation of the grade main application

HW-N10

HAND Cutting direction

R - Right

ID Technical product number

W0843060300

Interface codes

J6 /

ISYC Subclass

303-00 - End mill unspecified

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

Name Identifying order number

MRO.V.0843.0600.L.Z6.HA SCWX210

OAL Overall length

57 mm

PRFA Profile included angle

135 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
