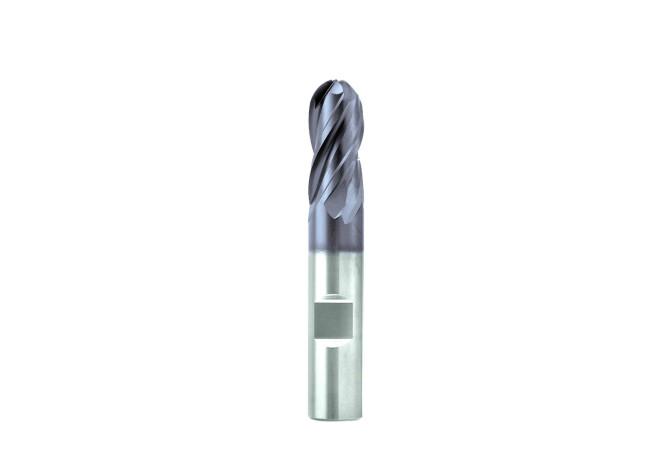

Главная Каталог продукции Toolunited 17 303-06 - Ball-nosed end mill STB440.500D3B.3Z4 ALCRN

STB440.500D3B.3Z4 ALCRN

STB440.500D3B.3Z4 ALCRN STB440.500D3B.3Z4 ALCRN STB440.500D3B.3Z4 ALCRN STB440.500D3B.3Z4 ALCRN

STB440.500D3B.3Z4 ALCRN

Seco
Артикул: 17004177
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
31.75 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
12.7 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/7/2017
DIN
ZYL05000125
FamilyProducts
STB440.500D3B.3Z4 ALCRN
FHA Flute helix angle
40 Degree
GAMF Rake angle radial
40 Degree
GAMP Rake angle axial
12 Degree
GRDMFG Grade manufacturers designation
ALCRN
HAND Cutting direction
R - Right
ID Technical product number
17004177
Interface codes
J6 /
ISYC Subclass
303-06 - Ball-nosed end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
0500
LOC-03 DCONMS Diameter
12.7 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL05000125
LS Shank length
45.24 mm
Name Identifying order number
STB440.500D3B.3Z4 ALCRN
NameAnsi Identifying order number inch alternative
STB440-0.500-D3-B.3-Z4 ALCRN
OAL Overall length
76.2 mm
PRFRAD Profile radius 1
6.35 mm
Working process
No working processes available
WT Weight of item
0.2 kg
ZEFP Peripheral effective cutting edge count
4
