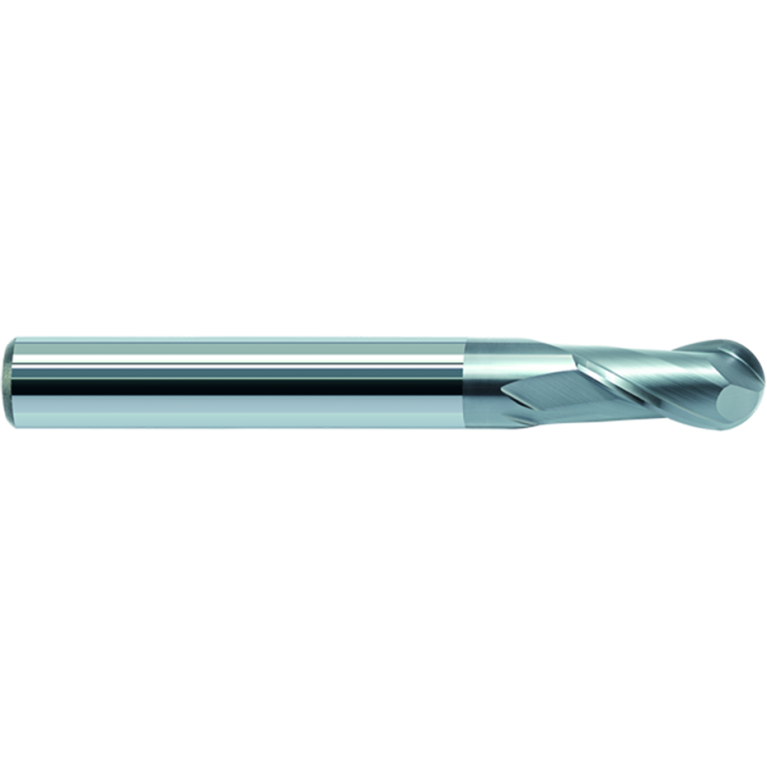

Главная Каталог продукции Toolunited 17 303-06 - Ball-nosed end mill NM-2B-R6.0 KMG309

NM-2B-R6.0 KMG309

Артикул: NM-2B-R6.0 KMG309

В наличии

В корзину

Описание

Характеристики

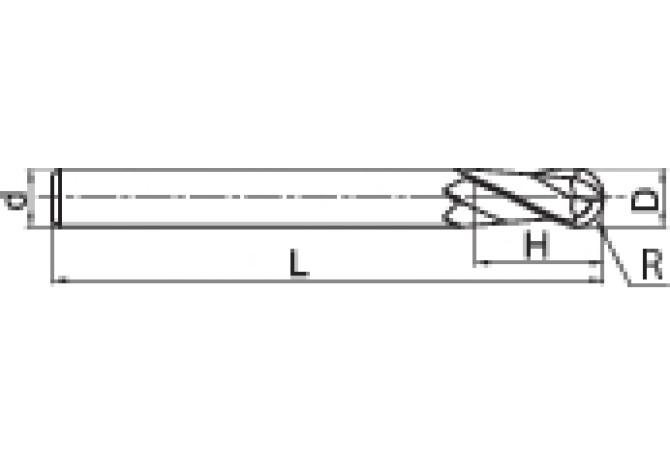

APMX Depth of cut maximum

24 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

Borid

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

0.98 kg

DIN

ZYL01200105

FamilyProducts

Ball nose cutter

FHA Flute helix angle

35 Degree

GRDMFG Grade manufacturers designation

KMG309

HAND Cutting direction

R - Right

ID Identifying order number

NM-2B-R6.0 KMG309

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LF Functional length

75 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200105

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

OAL Overall length

75 mm

PRFRAD Profile radius 1

6 mm

Working process

FFO - Die milling,FNU - Groove milling,FPR - Profile milling,FSE - Counter-sinking,FZI - Circular milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
