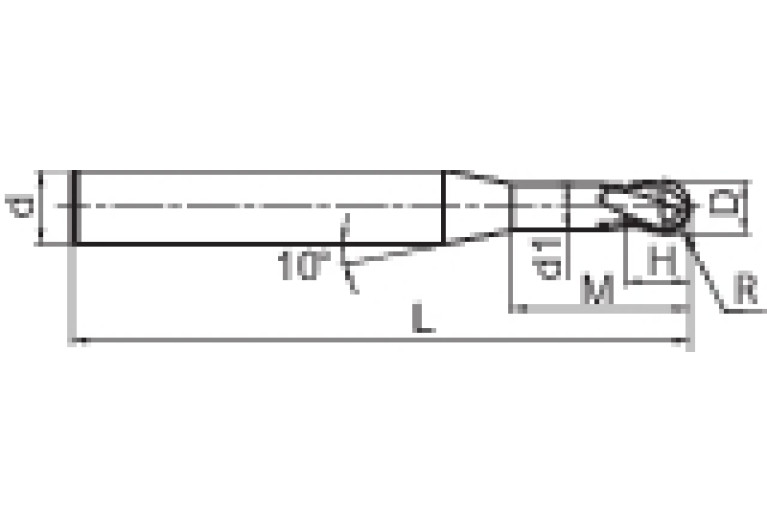

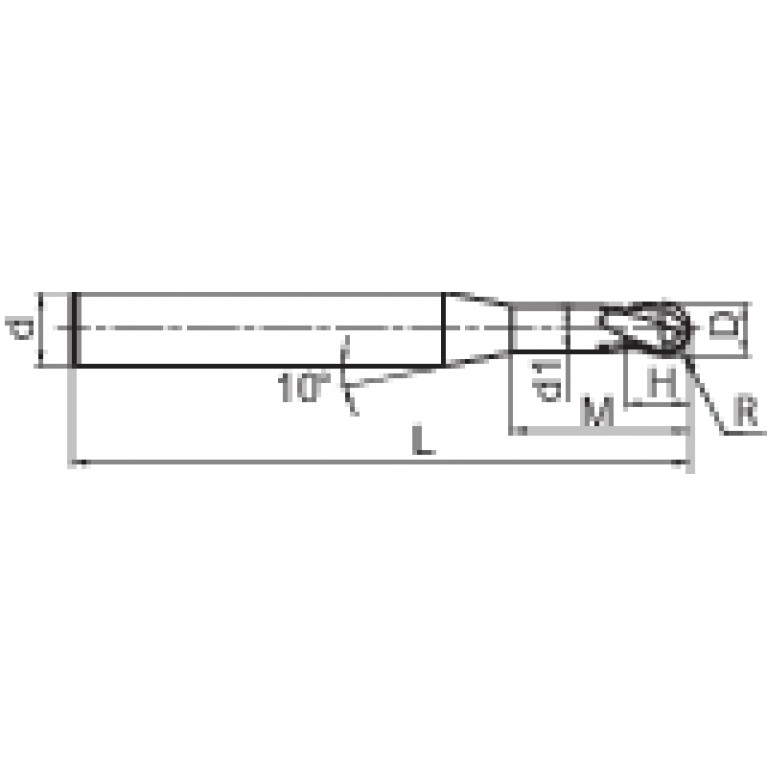

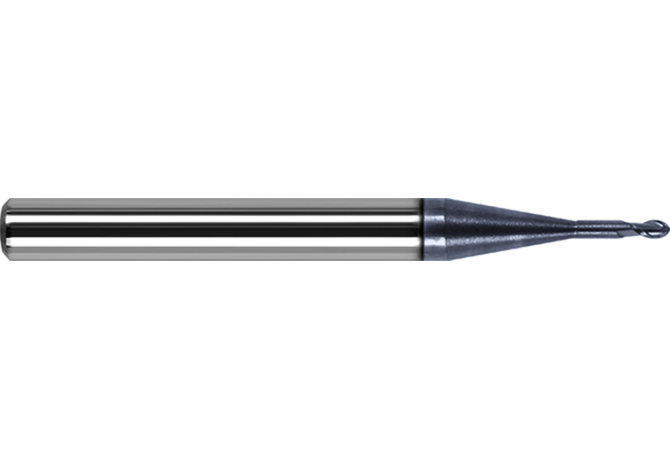

Главная Каталог продукции Toolunited 17 303-06 - Ball-nosed end mill GM-2BP-R2.5-M25 KMG303

GM-2BP-R2.5-M25 KMG303

Артикул: GM-2BP-R2.5-M25 KMG303

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

7.5 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlN

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

0.12 kg

DIN

ZYL00600105

DN Neck diameter

4.85 mm

FamilyProducts

Ball nose cutter

FHA Flute helix angle

35 Degree

GRDMFG Grade manufacturers designation

KMG303

HAND Cutting direction

R - Right

ID Identifying order number

GM-2BP-R2.5-M25 KMG303

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LF Functional length

70 mm

LH Head length

7.5 mm

LN Neck length

25 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

OAL Overall length

70 mm

PRFRAD Profile radius 1

2.5 mm

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
