Главная Каталог продукции Toolunited 17 303-06 - Ball-nosed end mill GM-2BFP-R8.0 KMG303

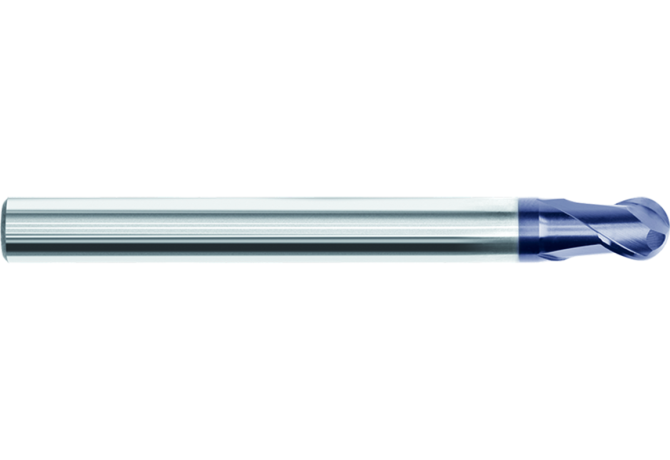

GM-2BFP-R8.0 KMG303

Артикул: GM-2BFP-R8.0 KMG303

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

16 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlN

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state

SF - Made to order

DIN

ZYL01600105

DN Neck diameter

15.5 mm

FamilyProducts

Ball nose cutter short cutting edge

FHA Flute helix angle

35 Degree

GRDMFG Grade manufacturers designation

KMG303

HAND Cutting direction

R - Right

ID Identifying order number

GM-2BFP-R8.0 KMG303

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LF Functional length

150 mm

LH Head length

16 mm

LN Neck length

32 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600105

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

OAL Overall length

150 mm

PRFRAD Profile radius 1

8 mm

Working process

FFO - Die milling,FNU - Groove milling,FPR - Profile milling,FSE - Counter-sinking,FZI - Circular milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
