Главная Каталог продукции Toolunited 17 303-06 - Ball-nosed end mill DSKA.2.160.050 MG3K

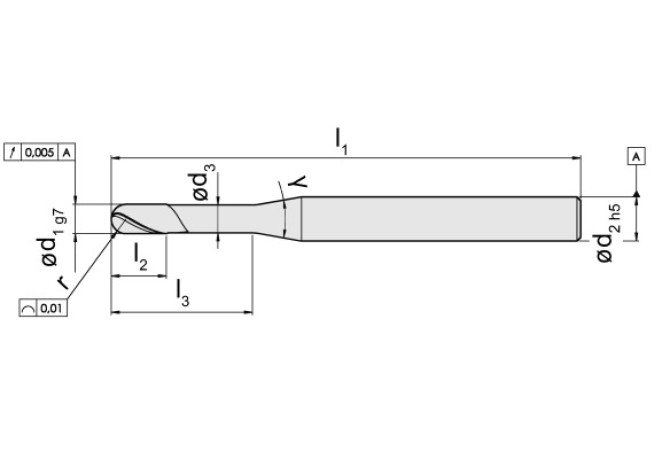

DSKA.2.160.050 MG3K

Артикул: DSKA2160050MG3K

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

40 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HORN - Paul Horn

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/27/2017

DIN

ZYL01600105

DN Neck diameter

15 mm

FamilyProducts

Kugelfräser DSKA für Alunimiumbearbeitung zentrumschneidend mit Vollradius, 2-schneidig

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

MG3K

HAND Cutting direction

R - Right

ID Technical product number

DSKA2160050MG3K

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LN Neck length

80 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$05

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600105

Name Identifying order number

DSKA.2.160.050 MG3K

OAL Overall length

140 mm

PRFRAD Profile radius 1

8 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FNU - Groove milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
