5566R302HH-0800 KMG405

Артикул: 5566R302HH-0800 KMG405

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

9 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

AlCrN

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

0.58 kg

DIN

ZYL00800105

DN Neck diameter

7.4 mm

FamilyProducts

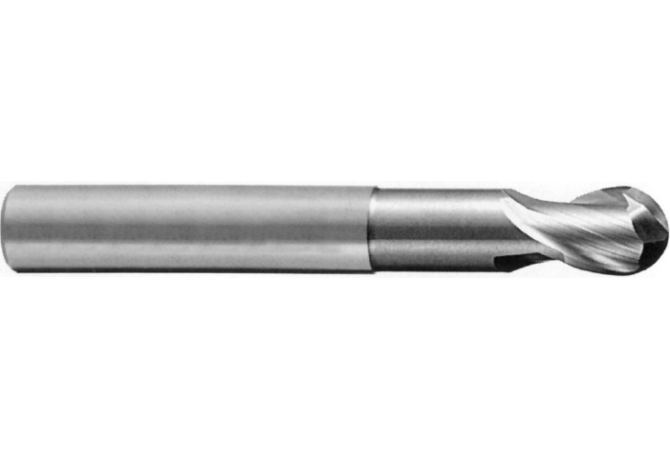

Ball nose cutter, long cutting edge, shank HA, coated

FHA Flute helix angle

30 Degree

GRDMFG Grade manufacturers designation

KMG405

HAND Cutting direction

R - Right

ID Identifying order number

5566R302HH-0800 KMG405

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LF Functional length

90 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800105

LS Shank length

55 mm

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

OAL Overall length

90 mm

PRFRAD Profile radius 1

4 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FFO - Die milling,FNU - Groove milling,FPR - Profile milling,FZI - Circular milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
