Главная Каталог продукции Toolunited 17 303-06 - Ball-nosed end mill 5565R302NH-1200 YK40F

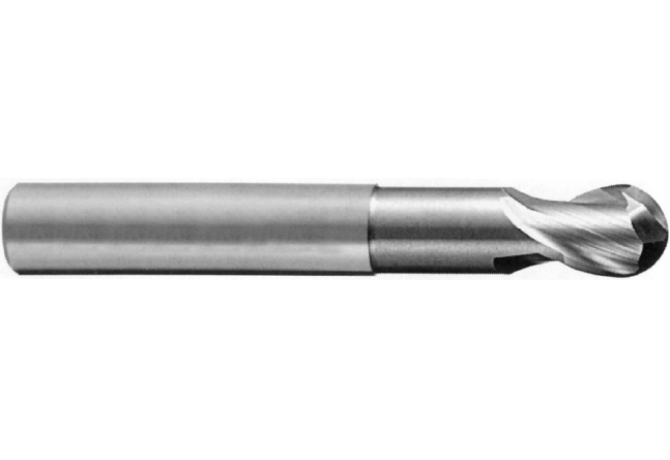

5565R302NH-1200 YK40F

Артикул: 5565R302NH-1200 YK40F

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

24 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

unbeschichtet

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1.06 kg

DIN

ZYL01200105

DN Neck diameter

11 mm

FamilyProducts

Ball nose cutter

FHA Flute helix angle

30 Degree

GRDMFG Grade manufacturers designation

YK40F

HAND Cutting direction

R - Right

ID Identifying order number

5565R302NH-1200 YK40F

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LF Functional length

83 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200105

LS Shank length

46 mm

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

OAL Overall length

83 mm

PRFRAD Profile radius 1

6 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FFO - Die milling,FNU - Groove milling,FPR - Profile milling,FSE - Counter-sinking,FZI - Circular milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
