Главная Каталог продукции Toolunited 17 303-06 - Ball-nosed end mill 5565R302GH-0400 KMG405

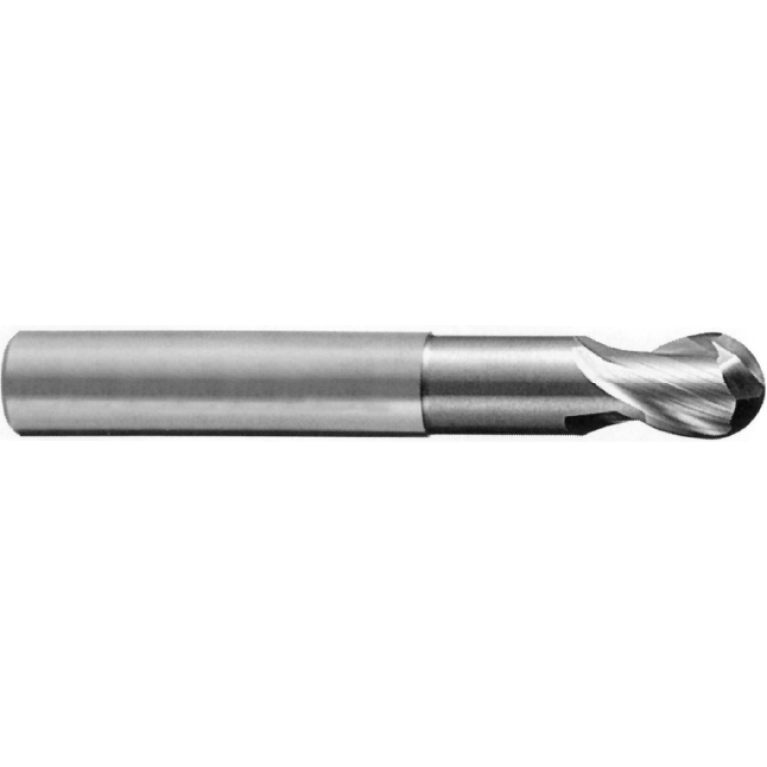

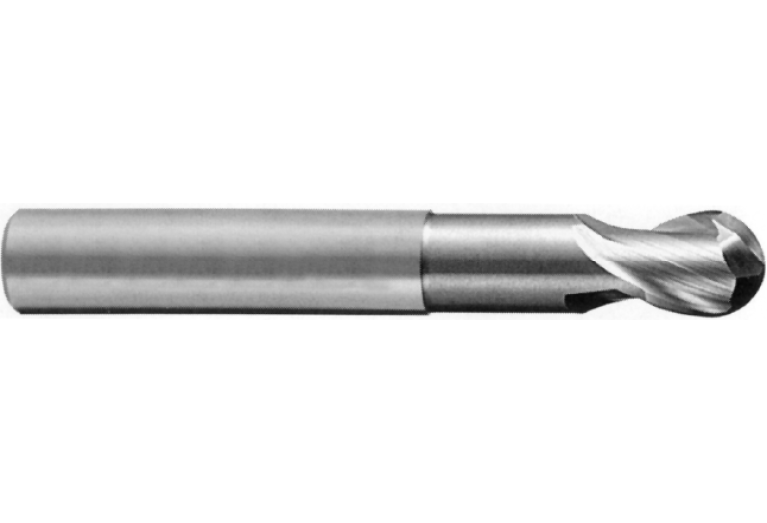

5565R302GH-0400 KMG405

Артикул: 5565R302GH-0400 KMG405

В наличии

В корзину

Описание

Характеристики

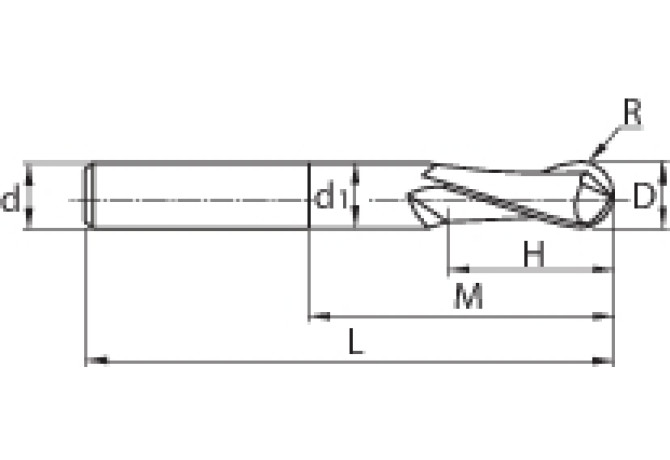

APMX Depth of cut maximum

5 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

AlCrN

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

4 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

0.19 kg

DIN

ZYL00600105

DN Neck diameter

3.7 mm

FamilyProducts

ZCC CT 2-flute ball nose end mills for HSC machining high hardness steel (HRC>48) short

FHA Flute helix angle

30 Degree

GRDMFG Grade manufacturers designation

KMG405

HAND Cutting direction

R - Right

ID Identifying order number

5565R302GH-0400 KMG405

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LF Functional length

57 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

LS Shank length

45 mm

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

OAL Overall length

57 mm

PRFRAD Profile radius 1

2 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FFO - Die milling,FNU - Groove milling,FPR - Profile milling,FZI - Circular milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
