Главная Каталог продукции Toolunited 17 303-06 - Ball-nosed end mill 3170133

3170133

Артикул: 3170133

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

0.63 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

Cr layer

COMPC Company code

OSG

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

1 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/1/2025

DIN

ZYL00400105

DN Neck diameter

0.95 mm

FamilyProducts

OSG WXL-PC-EBD R0.5X0.5°X10

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GAMP Rake angle axial

-5 Degree

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

Interface codes

J6 / J61

ISYC Subclass

303-06 - Ball-nosed end mill

LN Neck length

10 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0040

LOC-03 DCONMS Diameter

4 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00400105

LPR Protruding length

16.1 mm

LS Shank length

28.9 mm

LU Usable length

10 mm

Materials

P,M,K,N,S,H

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

Name Identifying order number

3170133

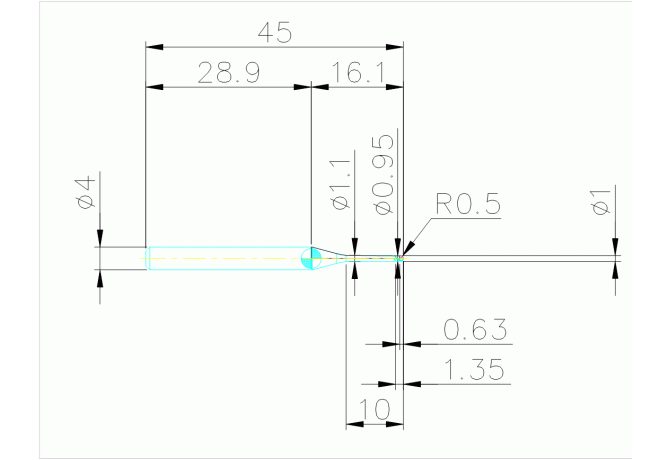

OAL Overall length

45 mm

PRFRAD Profile radius 1

0.5 mm

SN B101 Length of the non-cutting cylindrical neck section

0.72 mm

SN B102 Length to the transition radius beginning

10 mm

SN E101 1. neck angle

0.497 Degree

SN E102 Starting angle Neck radius

5.5 Degree

SN E103 2. neck angle

15 Degree

SN G102 Transition radius

10 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FFO - Die milling

WT Weight of item

0.013 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
