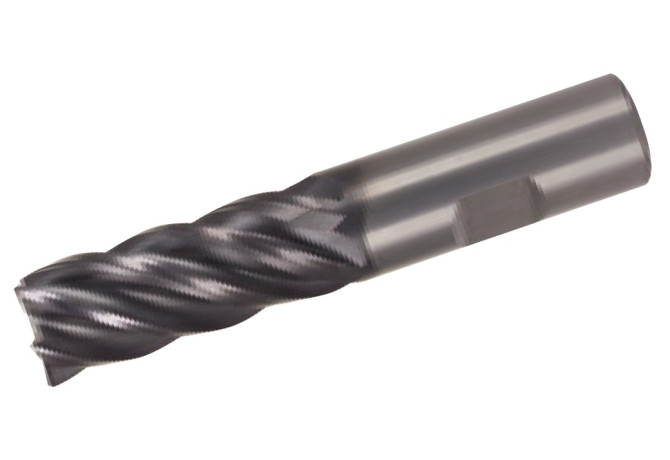

UDDE625K5BS KC643M

Артикул: 3580817

В наличии

В корзину

Описание

Характеристики

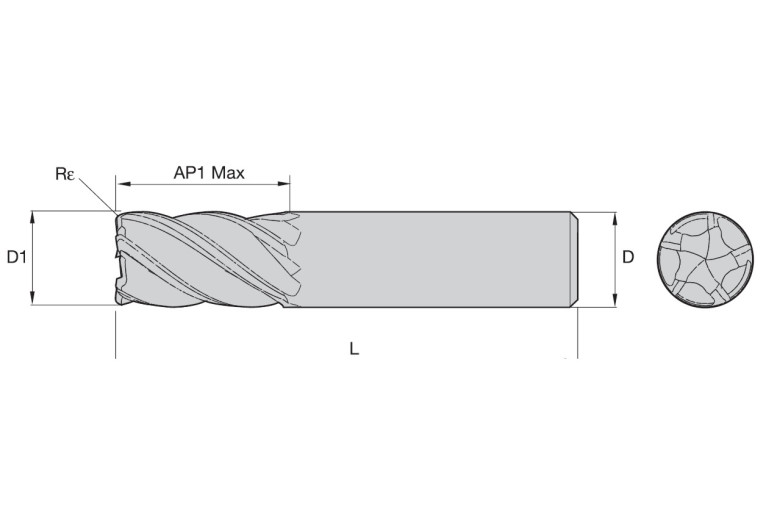

APMX Depth of cut maximum

31.75 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

15.875 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

5/3/2013

DIN

ZYL06250125

F71 Number of corner designs

FamilyProducts

UDDE - Harvi II 5-Flute for Titanium Alloys

FHA Flute helix angle

38 Degree

FHH Flute helix hand

R - Hand of helix right

GRD2ND Standard designation of the grade 2nd application

HC-M15

GRD3RD Standard designation of the grade 3rd application

HC-K15

GRDMFG Grade manufacturers designation

KC643M

GRDPRIO Standard designation of the grade main application

HC-P10

HAND Cutting direction

R - Right

ID Technical product number

3580817

Interface codes

J6 /

ISYC Subclass

303-01 - Non-centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0625

LOC-03 DCONMS Diameter

15.875 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL06250125

Name Identifying order number

UDDE625K5BS KC643M

OAL Overall length

88.9 mm

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
