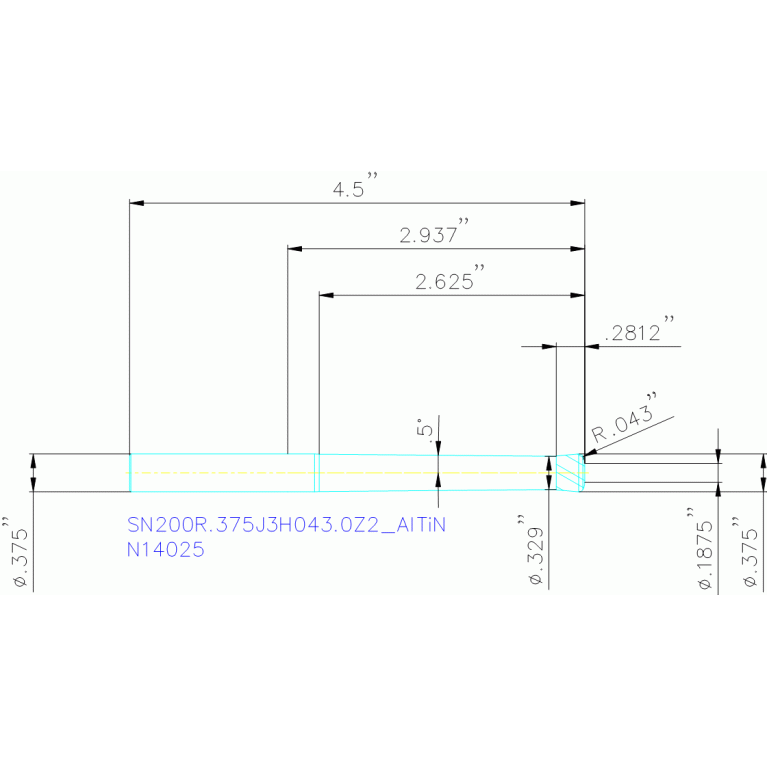

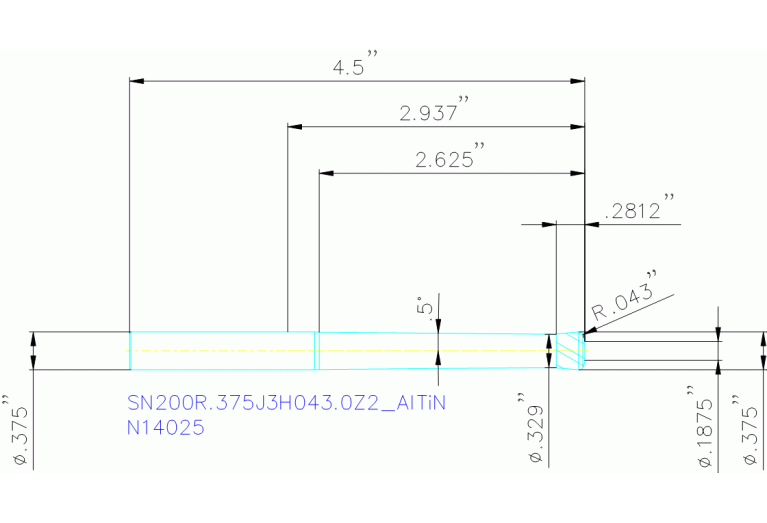

Главная Каталог продукции Toolunited 17 303-01 - Non-centre cutting end mill SN200R.375J3H043.0Z2 ALTIN

SN200R.375J3H043.0Z2 ALTIN

SN200R.375J3H043.0Z2 ALTIN SN200R.375J3H043.0Z2 ALTIN SN200R.375J3H043.0Z2 ALTIN SN200R.375J3H043.0Z2 ALTIN

SN200R.375J3H043.0Z2 ALTIN

Seco
Артикул: 03043608
В наличии
В корзину
Описание
Характеристики

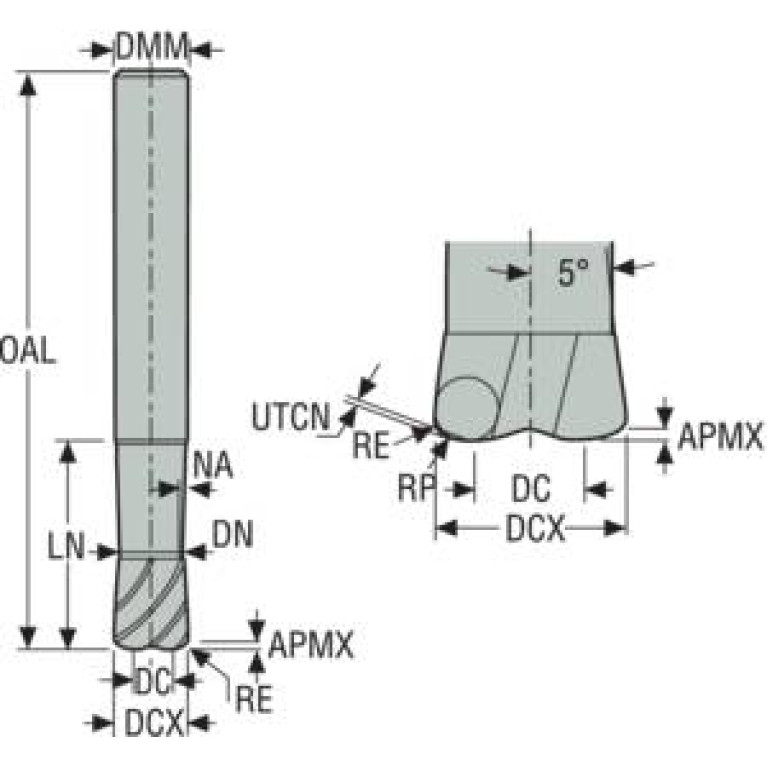

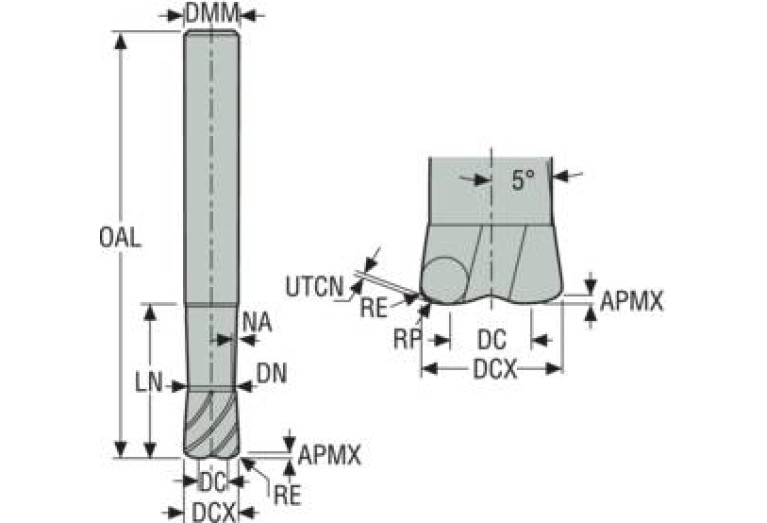

APMX Depth of cut maximum
0.457 mm
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
AlTiN
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
9.525 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL03750125
DN Neck diameter
8.357 mm
F71 Number of corner designs
1
FamilyProducts
SN200R.375J3H043.0Z2 ALTIN
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GAMF Rake angle radial
10 Degree
GAMP Rake angle axial
0.5 Degree
GRDMFG Grade manufacturers designation
ALTIN
HAND Cutting direction
R - Right
ID Technical product number
03043608
Interface codes
J6 /
ISYC Subclass
303-01 - Non-centre cutting end mill
LN Neck length
66.675 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
0375
LOC-03 DCONMS Diameter
9.525 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03750125
LS Shank length
39.688 mm
Name Identifying order number
SN200R.375J3H043.0Z2 ALTIN
NameAnsi Identifying order number inch alternative
SN200R-0.375-J3-H043.0-Z2
OAL Overall length
114.3 mm
RMPX Ramping angle maximum
1.5 Degree
Working process
No working processes available
WT Weight of item
0.08 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
