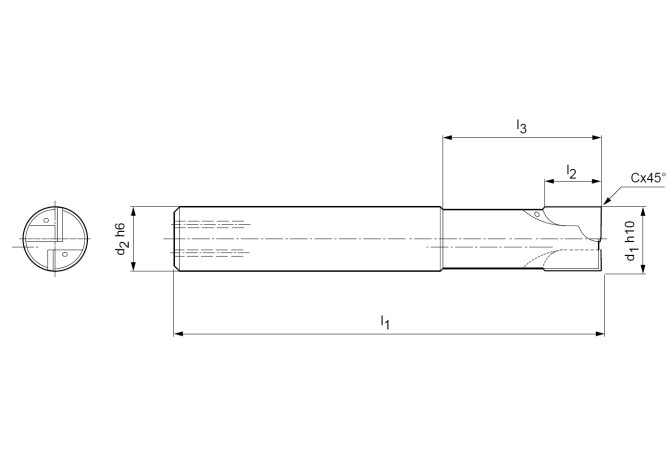

Главная Каталог продукции Toolunited 17 303-01 - Non-centre cutting end mill SHM711-0400AZ02R-F0010HA-PU690

SHM711-0400AZ02R-F0010HA-PU690

Артикул: 30599871

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

4 mm

BMC Body material code

D - Solid steel with soldered hard-alloy inserts (BN or DP)

CHW Corner chamfer width

0.1 mm

CNSC Coolant entry style code

2 - With Coolant entry, radial

COATN Coating / Покрытие

CVD-bestückt

COMPC Company code

MP - Mapal

CXSC Coolant exit style code

2 - With Coolant exit, radial

DC Cutting diameter

4 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/10/2017

DIN

ZYL00600115

F71 Number of corner designs

FamilyProducts

OptiMill®-Diamond-Typ 71 Überlange Ausführung mit Hals, mit Innenkühlung

FHH Flute helix hand

L - Hand of helix left

GRDMFG Grade manufacturers designation

PU690

HAND Cutting direction

R - Right

ID Technical product number

30599871

Interface codes

J6 /

ISYC Subclass

303-01 - Non-centre cutting end mill

KCH Corner chamfer angle

45 Degree

LF Functional length

60 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600115

LPR Protruding length

15 mm

Name Identifying order number

SHM711-0400AZ02R-F0010HA-PU690

OAL Overall length

60 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
