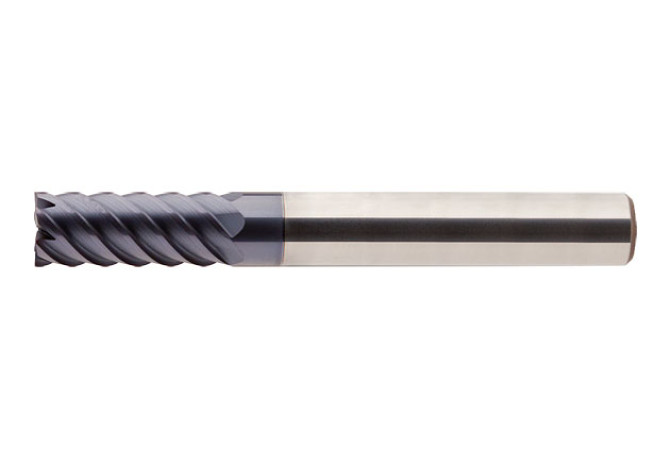

Главная Каталог продукции Toolunited 17 303-01 - Non-centre cutting end mill SC.H.0367.2000.L.Z8.S.HA SCPH205

SC.H.0367.2000.L.Z8.S.HA SCPH205

Артикул: W0367200340

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

38 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

CE - Ceratizit

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL02000105

F71 Number of corner designs

FamilyProducts

Finish milling cutters, coated W0367-L

FHA Flute helix angle

50 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

50 Degree

GAMP Rake angle axial

-5 Degree

GRDMFG Grade manufacturers designation

SCPH205

GRDPRIO Standard designation of the grade main application

HC-H05

HAND Cutting direction

R - Right

ID Technical product number

W0367200340

Interface codes

J6 /

ISYC Subclass

303-01 - Non-centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02000105

Name Identifying order number

SC.H.0367.2000.L.Z8.S.HA SCPH205

OAL Overall length

104 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

ZEFP Peripheral effective cutting edge count
