Главная Каталог продукции Toolunited 17 303-01 - Non-centre cutting end mill REM445.375D4C025.3Z4 TICN

REM445.375D4C025.3Z4 TICN

REM445.375D4C025.3Z4 TICN REM445.375D4C025.3Z4 TICN REM445.375D4C025.3Z4 TICN REM445.375D4C025.3Z4 TICN

REM445.375D4C025.3Z4 TICN

Seco
Артикул: 17016193
В наличии
В корзину
Описание
Характеристики

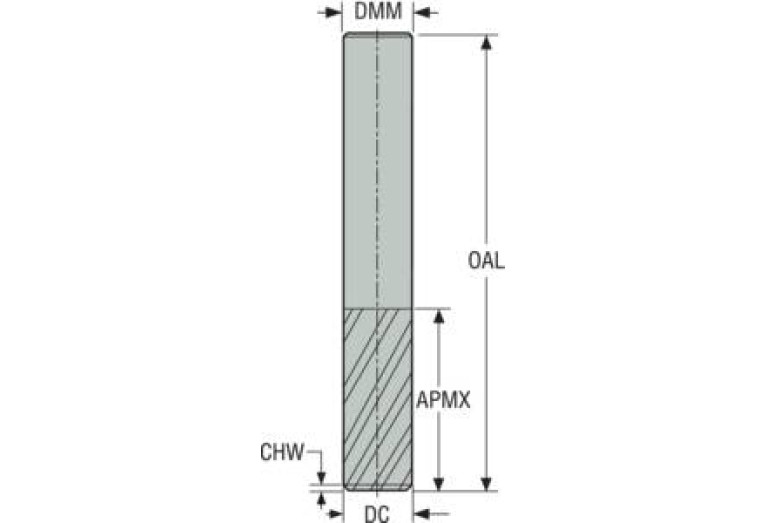

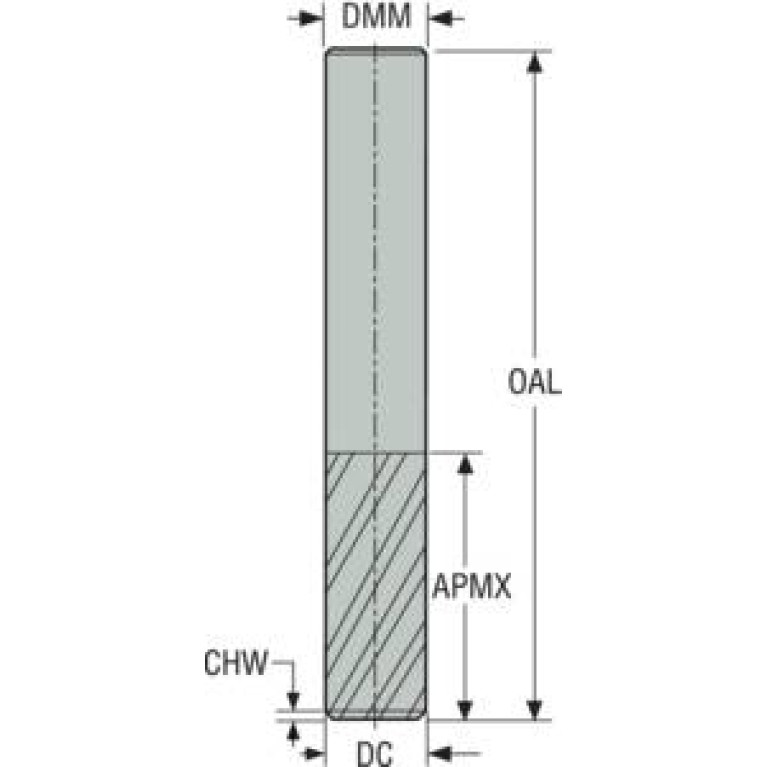

APMX Depth of cut maximum
38.1 mm
CHW Corner chamfer width
0.635 mm
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TiCN
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
9.525 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL03751025
F71 Number of corner designs
1
FamilyProducts
REM445.375D4C025.3Z4 TICN
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
30 Degree
GAMP Rake angle axial
10 Degree
GRDMFG Grade manufacturers designation
TICN
HAND Cutting direction
R - Right
ID Technical product number
17016193
Interface codes
J6 /
ISYC Subclass
303-01 - Non-centre cutting end mill
KCH Corner chamfer angle
45 Degree
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
0375
LOC-03 DCONMS Diameter
9.525 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03751025
LS Shank length
39.69 mm
Name Identifying order number
REM445.375D4C025.3Z4 TICN
NameAnsi Identifying order number inch alternative
REM445-0.375-D4-C025.3-Z4
OAL Overall length
82.55 mm
RMPX Ramping angle maximum
2 Degree
Working process
No working processes available
WT Weight of item
0.041 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
