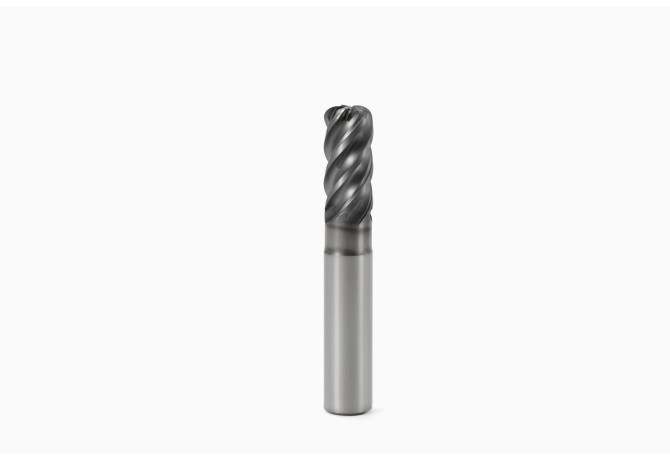

JHP770250E2R050.3Z5A-SIRA

JHP770250E2R050.3Z5A-SIRA JHP770250E2R050.3Z5A-SIRA JHP770250E2R050.3Z5A-SIRA

JHP770250E2R050.3Z5A-SIRA

Seco
Артикул: 02810153
В наличии
В корзину
Описание
Характеристики

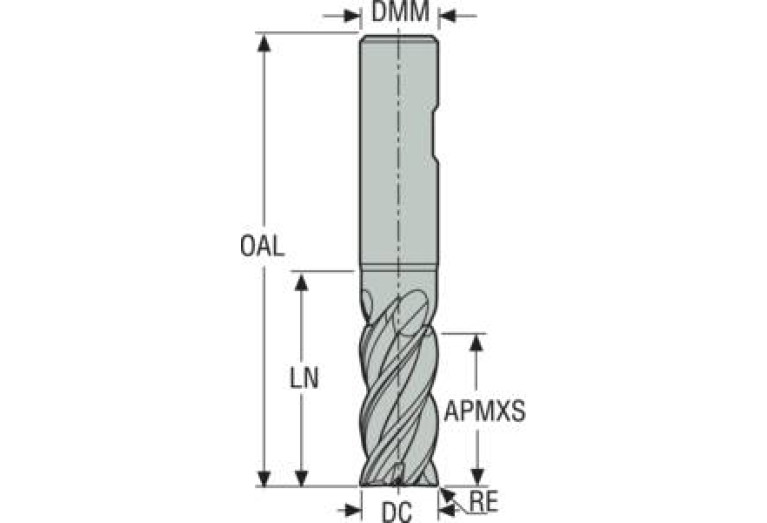

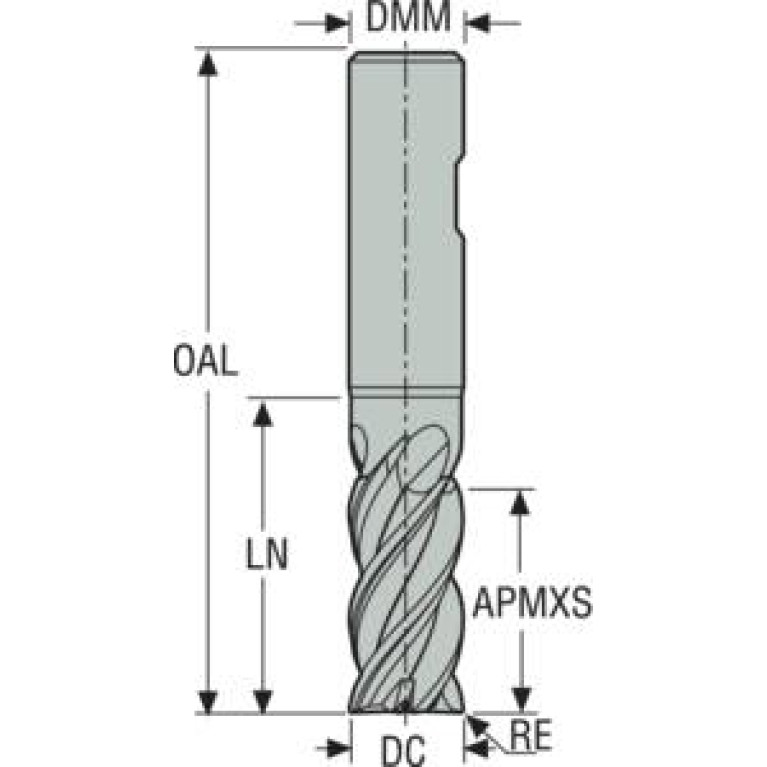

APMX Depth of cut maximum
50 mm
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
SIRON-A
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL02501015
DN Neck diameter
24.4 mm
F71 Number of corner designs
1
FamilyProducts
JHP770250E2R050.3Z5A-SIRA
FHA Flute helix angle
42 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
42 Degree
GAMP Rake angle axial
6 Degree
HAND Cutting direction
R - Right
ID Technical product number
02810153
Interface codes
J6 /
ISYC Subclass
303-01 - Non-centre cutting end mill
LN Neck length
65 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02501015
LS Shank length
56 mm
Name Identifying order number
JHP770250E2R050.3Z5A-SIRA
OAL Overall length
130 mm
RMPX Ramping angle maximum
15 Degree
Working process
No working processes available
WT Weight of item
0.747 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
