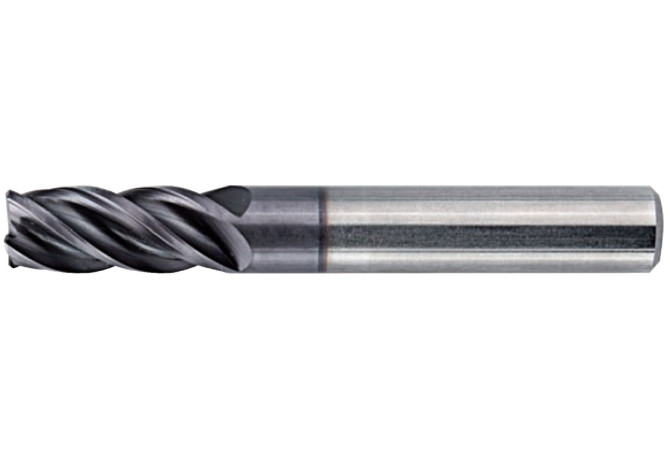

Главная Каталог продукции Toolunited 17 303-01 - Non-centre cutting end mill F4AS0800AWM38R100 KC633M

F4AS0800AWM38R100 KC633M

Артикул: 2445714

В наличии

В корзину

Описание

Характеристики

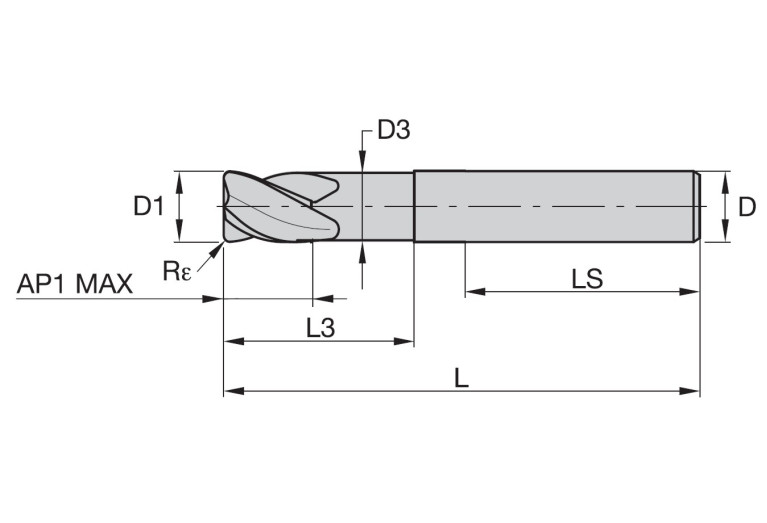

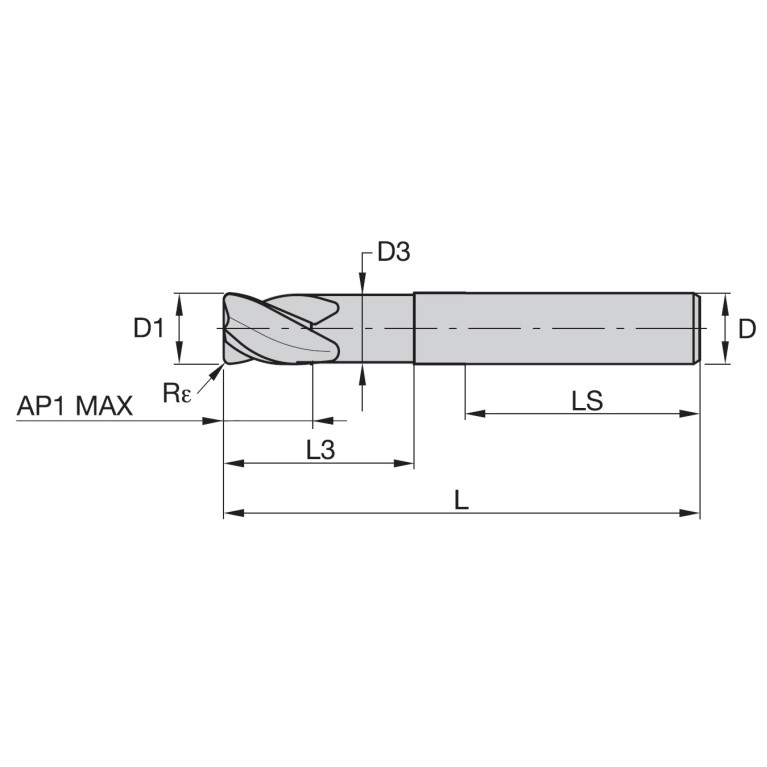

APMX Depth of cut maximum

12 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

8 mm

DCONMSLD Shank diameter lower limit

0 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/4/2011

DIN

ZYL00800105

DN Neck diameter

7.8 mm

F71 Number of corner designs

FamilyProducts

F4AS..WM-WL-WX - Ext. Neck - Unequal Flute Spacing

FHA Flute helix angle

38 Degree

FHH Flute helix hand

R - Hand of helix right

GRD2ND Standard designation of the grade 2nd application

HC-M30

GRD3RD Standard designation of the grade 3rd application

HC-M20

GRDMFG Grade manufacturers designation

KC633M

GRDPRIO Standard designation of the grade main application

HC-P30

HAND Cutting direction

R - Right

ID Technical product number

2445714

Interface codes

J6 /

ISYC Subclass

303-01 - Non-centre cutting end mill

LH Head length

24 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800105

LPR Protruding length

24 mm

LS Shank length

36 mm

Name Identifying order number

F4AS0800AWM38R100 KC633M

OAL Overall length

68 mm

RE Corner radius

1 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FFO - Die milling,FNB - Slotting,FNU - Groove milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
