Главная Каталог продукции Toolunited 17 303-01 - Non-centre cutting end mill F3BS1000BDK35 KC633M

F3BS1000BDK35 KC633M

Артикул: 1807061

В наличии

В корзину

Описание

Характеристики

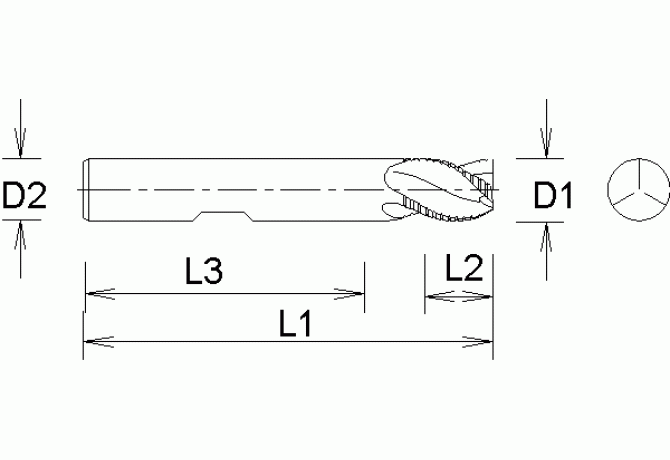

APMX Depth of cut maximum

11 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

10 mm

DCONMSLD Shank diameter lower limit

0 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

5/3/2013

DIN

ZYL01001005

F71 Number of corner designs

FamilyProducts

SC ROUGHER B

FHA Flute helix angle

35 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

35 Degree

GRD2ND Standard designation of the grade 2nd application

HC-M30

GRD3RD Standard designation of the grade 3rd application

HC-M20

GRDMFG Grade manufacturers designation

KC633M

GRDPRIO Standard designation of the grade main application

HC-P30

HAND Cutting direction

R - Right

ID Technical product number

1807061

Interface codes

J6 /

ISYC Subclass

303-01 - Non-centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01001005

LPR Protruding length

21 mm

LS Shank length

45 mm

Name Identifying order number

F3BS1000BDK35 KC633M

OAL Overall length

66 mm

RE Corner radius

0.45 mm

STDNO Standard

DIN6527

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FFO - Die milling,FNB - Slotting,FNU - Groove milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
