Главная Каталог продукции Toolunited 17 303-01 - Non-centre cutting end mill F3BH0800BWS20C110 KC633M

F3BH0800BWS20C110 KC633M

Артикул: 1806941

В наличии

В корзину

Описание

Характеристики

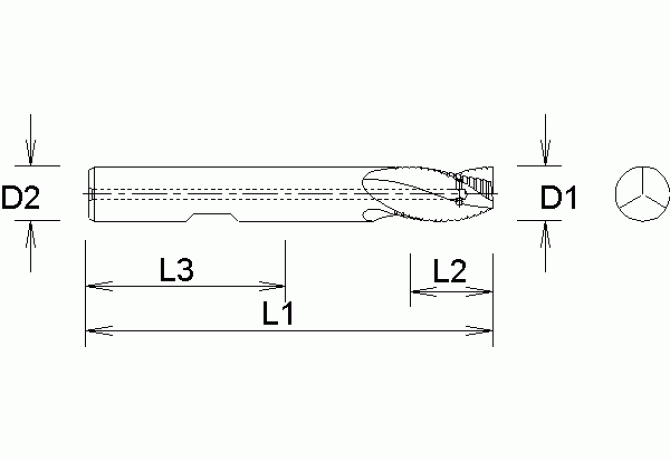

APMX Depth of cut maximum

11 mm

BMC Body material code

H - Solid carbide

CHW Corner chamfer width

0.3 mm

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

8 mm

DCONMSLD Shank diameter lower limit

0 mm

DCONMSUD Shank diameter upper limit

-0.009 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

5/3/2013

DIN

ZYL00801015

F71 Number of corner designs

FamilyProducts

SC ROUGHER B

FHA Flute helix angle

20 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

20 Degree

GAMP Rake angle axial

1 Degree

GRD2ND Standard designation of the grade 2nd application

HC-M30

GRD3RD Standard designation of the grade 3rd application

HC-M20

GRDMFG Grade manufacturers designation

KC633M

GRDPRIO Standard designation of the grade main application

HC-P30

HAND Cutting direction

R - Right

ID Technical product number

1806941

Interface codes

J6 /

ISYC Subclass

303-01 - Non-centre cutting end mill

KCH Corner chamfer angle

45 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00801015

LPR Protruding length

18 mm

LS Shank length

40 mm

Name Identifying order number

F3BH0800BWS20C110 KC633M

OAL Overall length

58 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FNU - Groove milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
