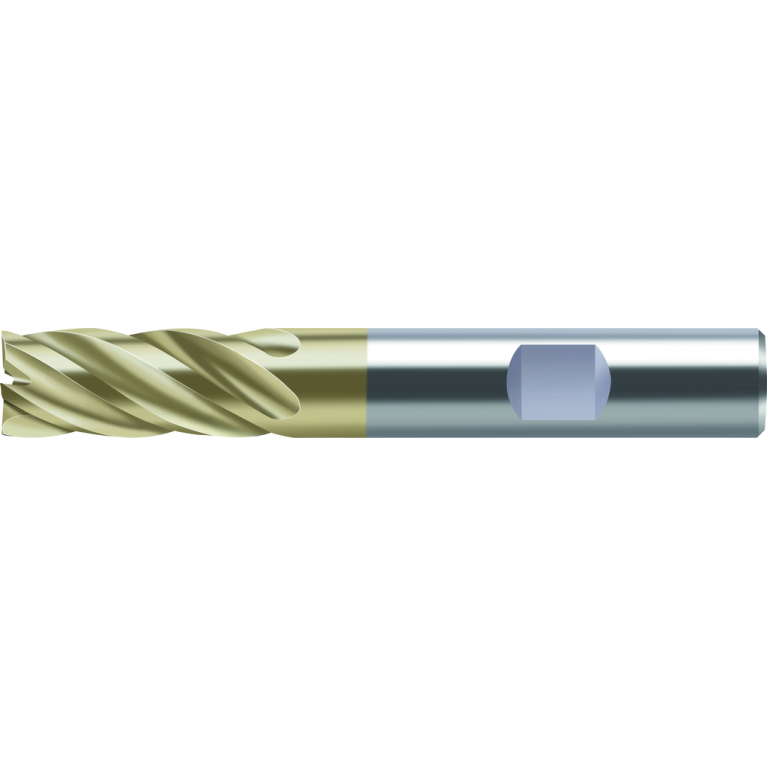

Главная Каталог продукции Toolunited 17 303-01 - Non-centre cutting end mill AH4135217-3/8

AH4135217-3/8

Артикул: 7092155

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

22.225 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

AlTiN + ZrN

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

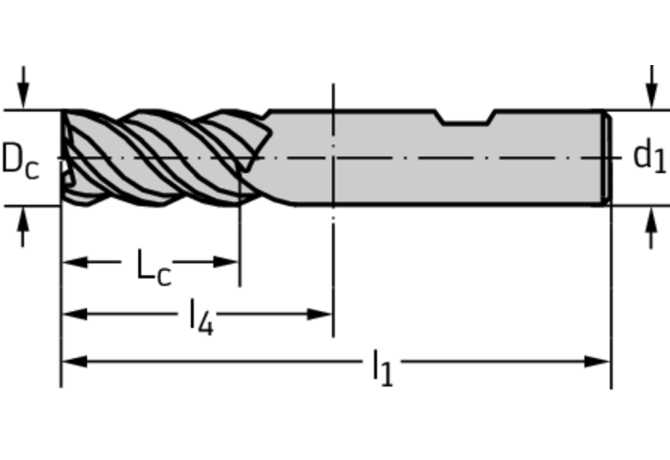

DC Cutting diameter

9.525 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL03751025

F71 Number of corner designs

FamilyProducts

Solid carbide shoulder/slot milling cutter AH4135217

FHA Flute helix angle

35 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

10.5 Degree

GAMP Rake angle axial

4 Degree

GRDMFG Grade manufacturers designation

TAZ

HAND Cutting direction

R - Right

ID Technical product number

7092155

Interface codes

J6 / J61

ISO

ZYL10R3750h$06

ISYC Subclass

303-01 - Non-centre cutting end mill

LF Functional length

56.356 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

2 Inch

LOC-03 CZCMS Size code

0375

LOC-03 DCONMS Diameter

9.525 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03 ISO

ZYL10R3750h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03751025

LPR Protruding length

36.5 mm

Name Identifying order number

AH4135217-3/8

OAL Overall length

76.2 mm

RMPX Ramping angle maximum

6 Degree

RPMX Rotational speed maximum

74430 1/min

STDLET Standard letter to the standard number

STDNO Standard

STANDARD

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.072 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
