Главная Каталог продукции Toolunited 17 303-01 - Non-centre cutting end mill 5502R55MHH-0300 KMG555

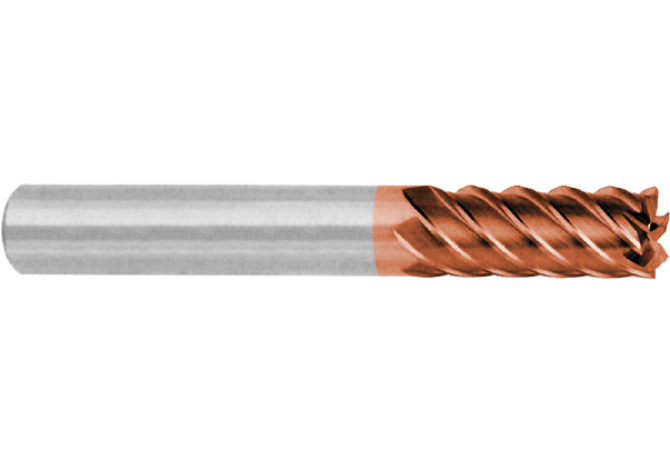

5502R55MHH-0300 KMG555

Артикул: 5502R55MHH-0300 KMG555

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

8 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

Powernitrid

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

3 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

0.19 kg

DIN

ZYL00600105

F71 Number of corner designs

FamilyProducts

End mill long cutting edge

FHA Flute helix angle

55 Degree

GRDMFG Grade manufacturers designation

KMG555

HAND Cutting direction

R - Right

ID Identifying order number

5502R55MHH-0300 KMG555

Interface codes

J6 /

ISYC Subclass

303-01 - Non-centre cutting end mill

LF Functional length

57 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

MILTTY Mill tool type ISO

G - Side end mill (one or more indexable insert pro cutting edge) 90°

OAL Overall length

57 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FPL - Face milling,FZI - Circular milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
