Главная Каталог продукции Toolunited 17 303-09 - Thread end mill TM-M8X1.25ISO-8R1-H

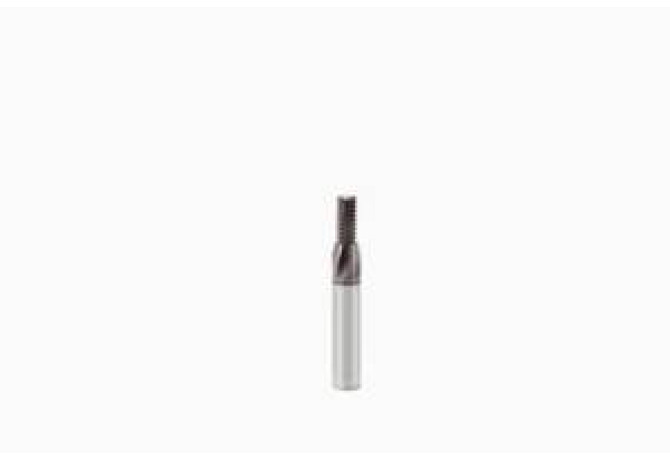

TM-M8X1.25ISO-8R1-H

Артикул: 02827352

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

12.5 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

6.2 mm

Delivery state valid from

12/1/2023

DIN

ZYL00800105

FamilyProducts

TM-M8X1.25ISO-8R1-H

HAND Cutting direction

R - Right

ID Technical product number

02827352

Interface codes

J6 /

ISYC Subclass

303-09 - Thread end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800105

LPR Protruding length

21 mm

LS Shank length

36 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

TM-M8X1.25ISO-8R1-H

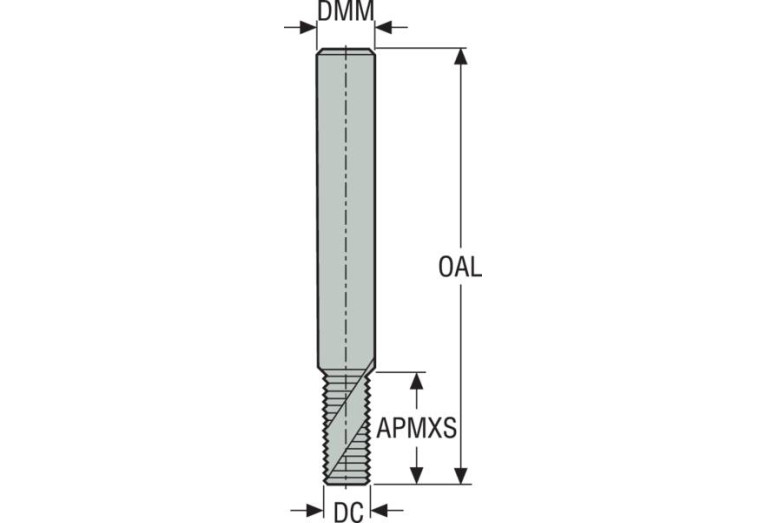

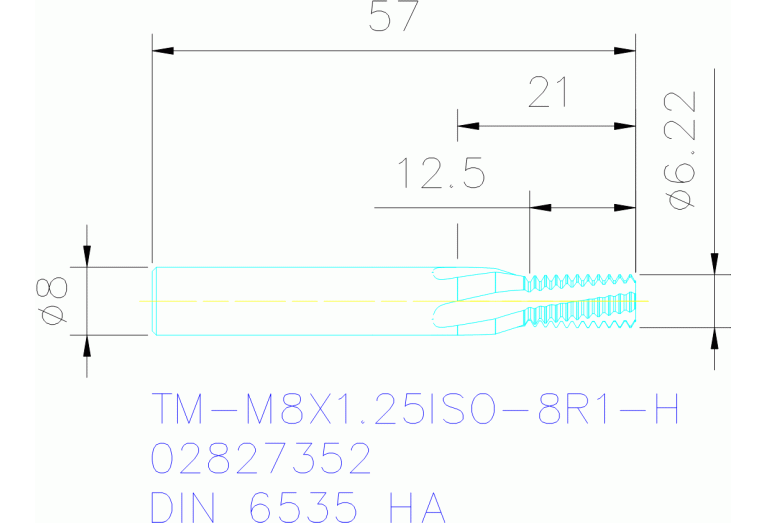

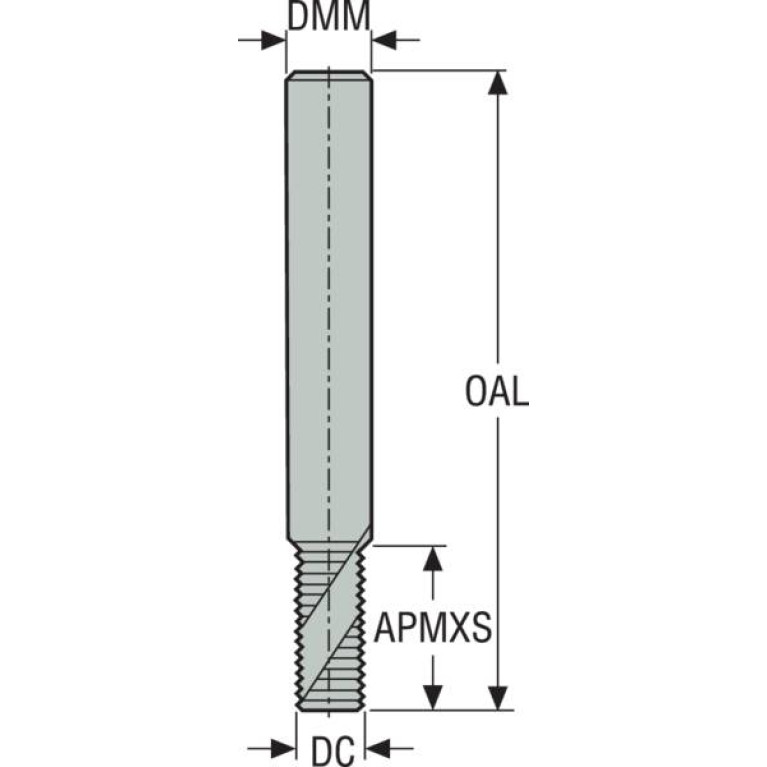

OAL Overall length

57 mm

RPMX Rotational speed maximum

15000 1/min

TD Thread diameter

8 mm

THFT Thread form type

TP Thread pitch

1.25 mm

Working process

No working processes available

WT Weight of item

0.034 kg

ZEFP Peripheral effective cutting edge count
