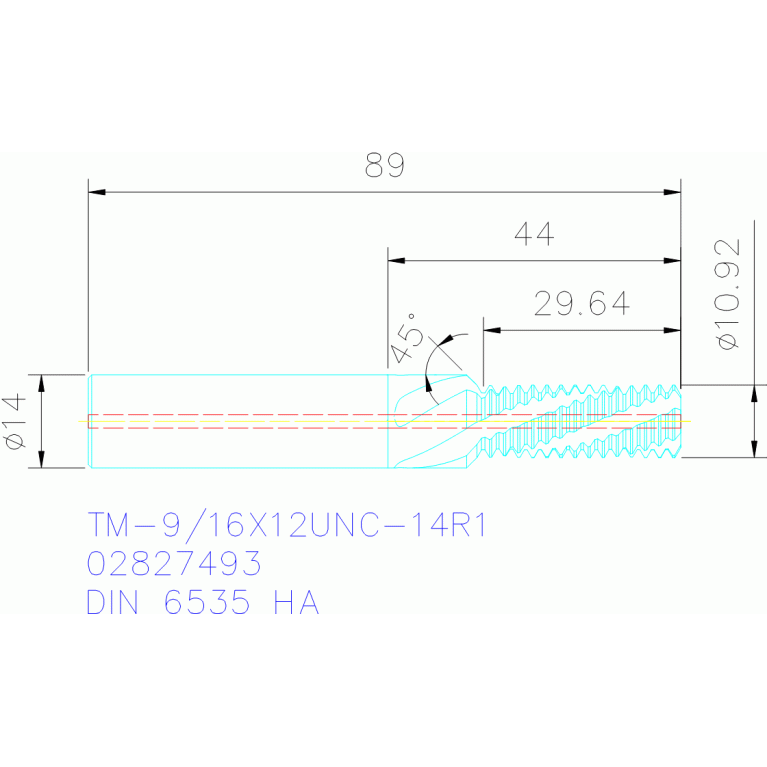

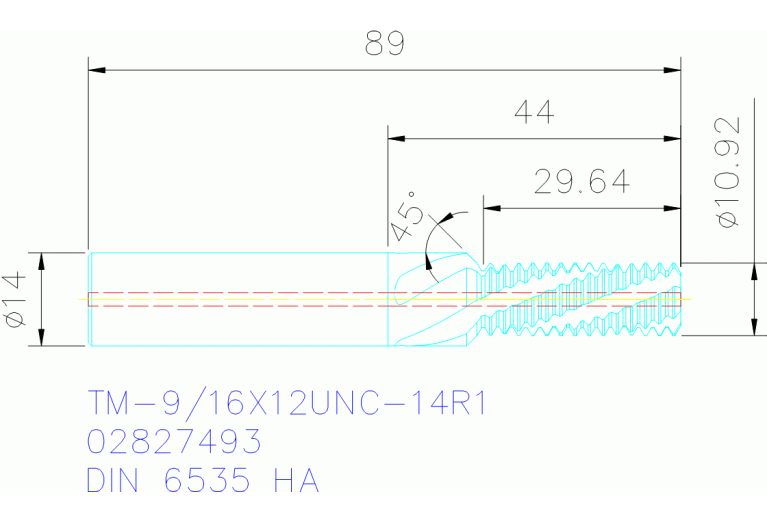

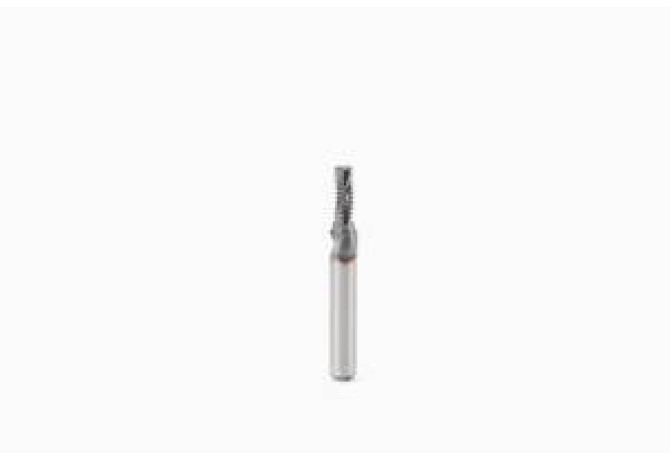

TM-9/16X12UNC-14R1

Артикул: 02827493

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

30.7 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

10.9 mm

Delivery state valid from

12/1/2023

DIN

ZYL01400105

FamilyProducts

TM-9/16X12UNC-14R1

HAND Cutting direction

R - Right

ID Technical product number

02827493

Interface codes

J6 /

ISYC Subclass

303-09 - Thread end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0140

LOC-03 DCONMS Diameter

14 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01400105

LPR Protruding length

44 mm

LS Shank length

45 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

TM-9/16X12UNC-14R1

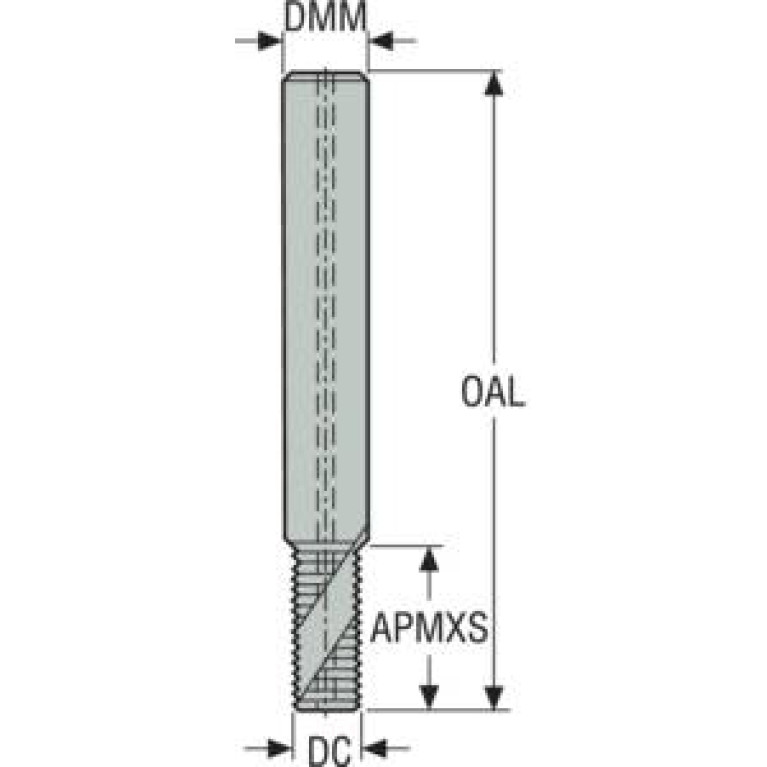

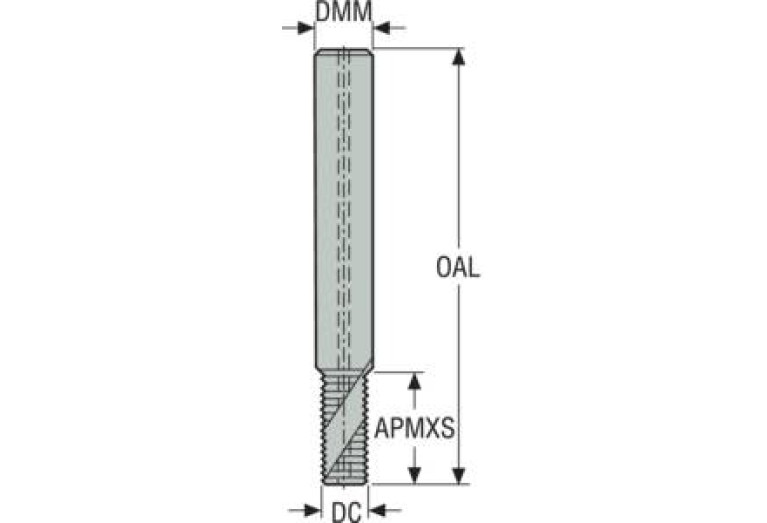

OAL Overall length

89 mm

RPMX Rotational speed maximum

10000 1/min

TDFR Thread diameter nominal fraction

9/16 in

THFT Thread form type

UNC

TPI Threads per inch

12 1/in

Working process

No working processes available

WT Weight of item

0.143 kg

ZEFP Peripheral effective cutting edge count
