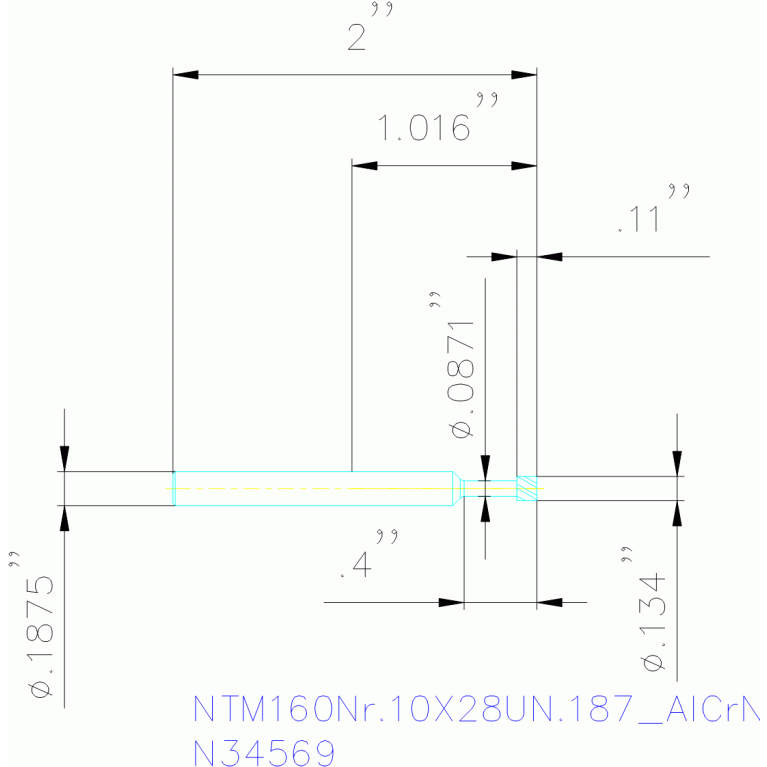

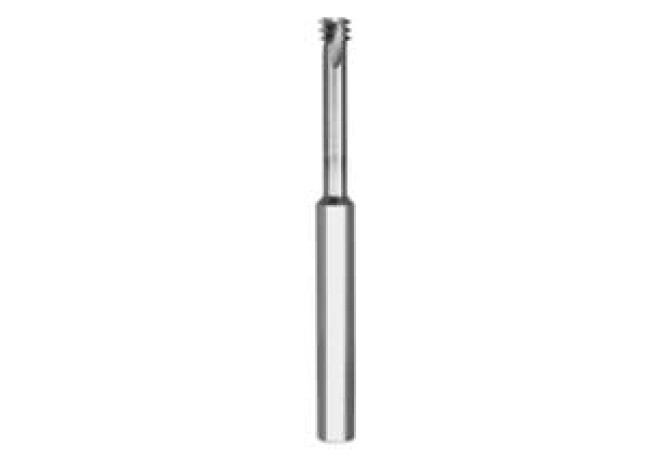

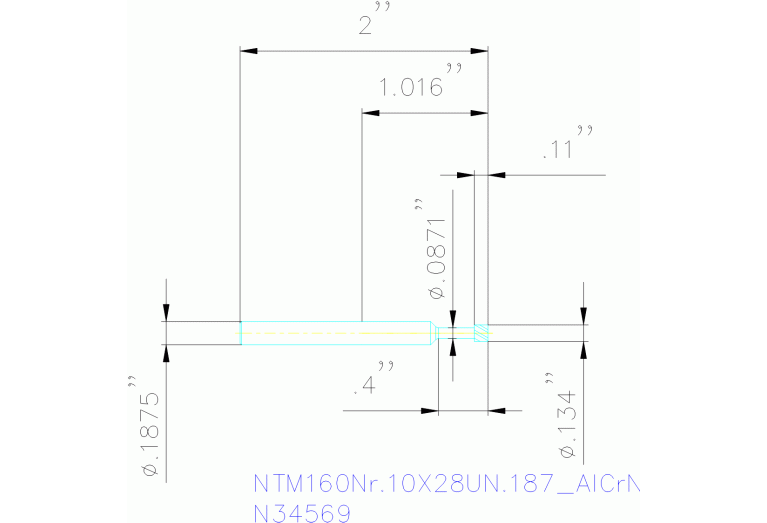

Главная Каталог продукции Toolunited 17 303-09 - Thread end mill NTM160NR.10X28UN.187 ALCRN

NTM160NR.10X28UN.187 ALCRN

NTM160NR.10X28UN.187 ALCRN NTM160NR.10X28UN.187 ALCRN NTM160NR.10X28UN.187 ALCRN NTM160NR.10X28UN.187 ALCRN

NTM160NR.10X28UN.187 ALCRN

Seco
Артикул: 17000519
В наличии
В корзину
Описание
Характеристики

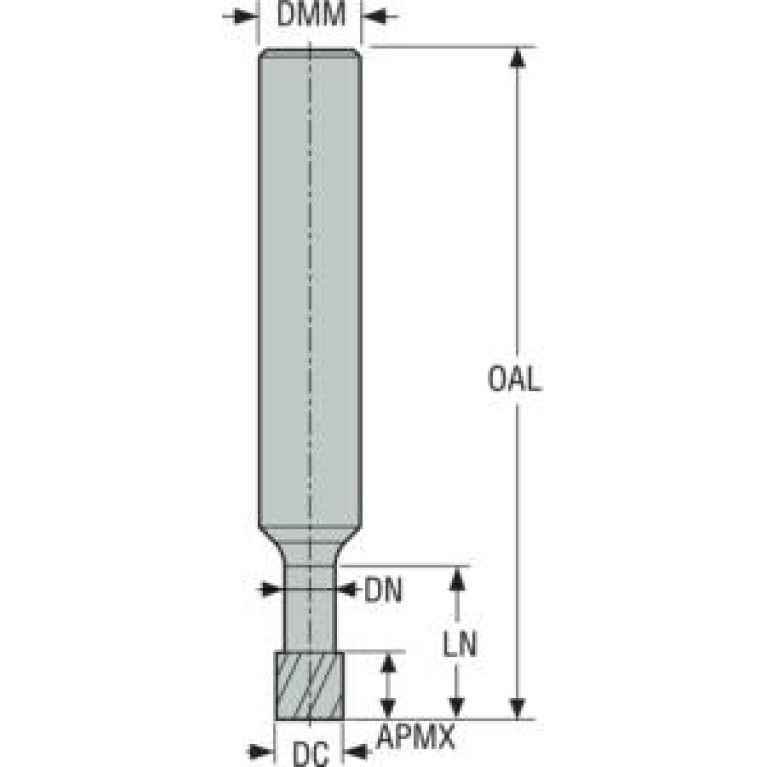

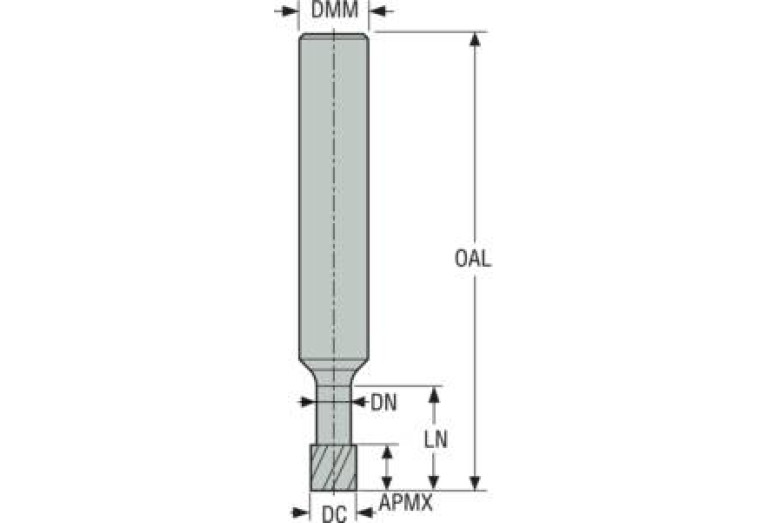

APMX Depth of cut maximum
2.794 mm
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL01870125
DN Neck diameter
2.21 mm
FamilyProducts
NTM160NR.10X28UN.187 ALCRN
GRDMFG Grade manufacturers designation
ALCRN
HAND Cutting direction
R - Right
ID Technical product number
17000519
Interface codes
J6 / J61
ISO
ZYL01R1875h$05
ISYC Subclass
303-09 - Thread end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
0187
LOC-03 DCONMS Diameter
4.762 mm
LOC-03 ISO
ZYL01R1875h$05
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01870125
LPR Protruding length
28 mm
LS Shank length
40.64 mm
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
NTM160NR.10X28UN.187 ALCRN
NameAnsi Identifying order number inch alternative
NTM160-NR.10X28UN-.187 ALCRN
OAL Overall length
50.8 mm
RPMX Rotational speed maximum
10000 1/min
TDN Thread diameter min.
10 mm
TPI Threads per inch
28 1/in
Working process
No working processes available
WT Weight of item
0.009 kg
ZEFP Peripheral effective cutting edge count
3
