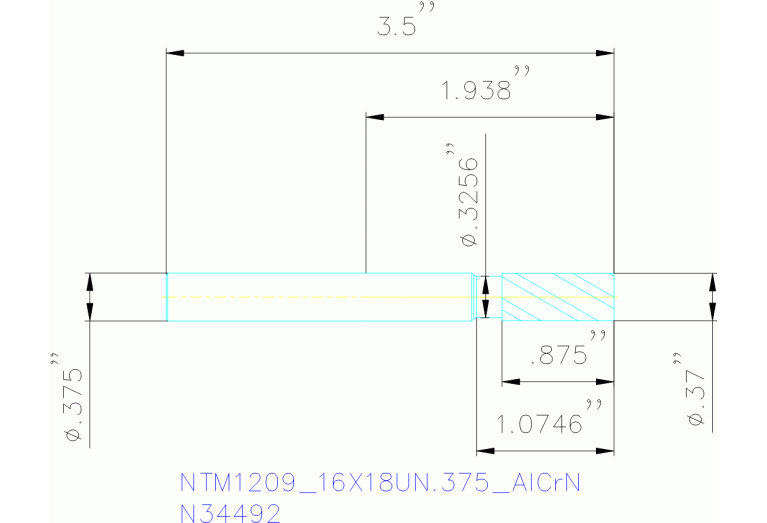

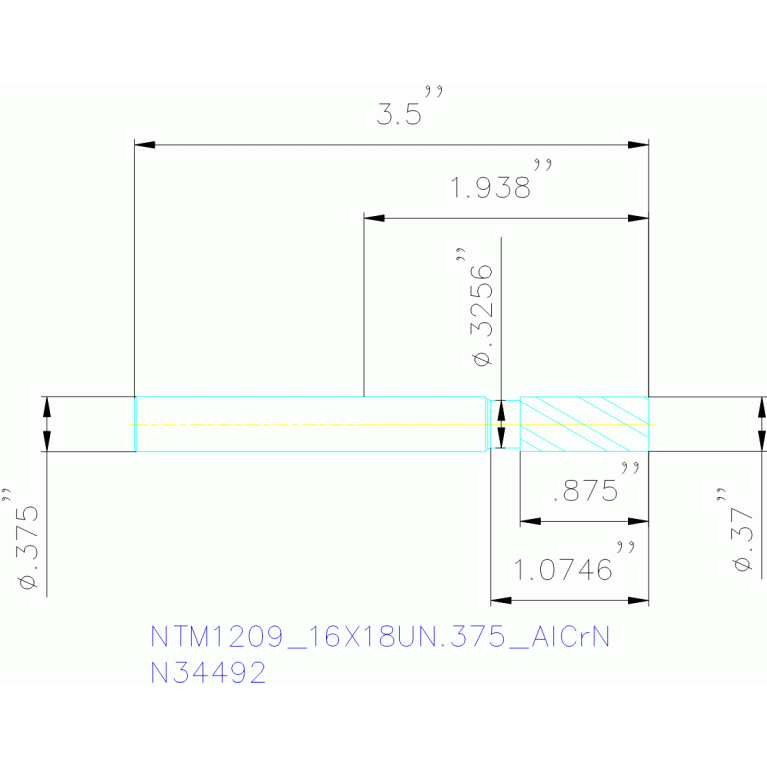

NTM1209/16X18UN.375 ALCRN

NTM1209/16X18UN.375 ALCRN NTM1209/16X18UN.375 ALCRN NTM1209/16X18UN.375 ALCRN NTM1209/16X18UN.375 ALCRN

NTM1209/16X18UN.375 ALCRN

Seco
Артикул: 17000442
В наличии
В корзину
Описание
Характеристики

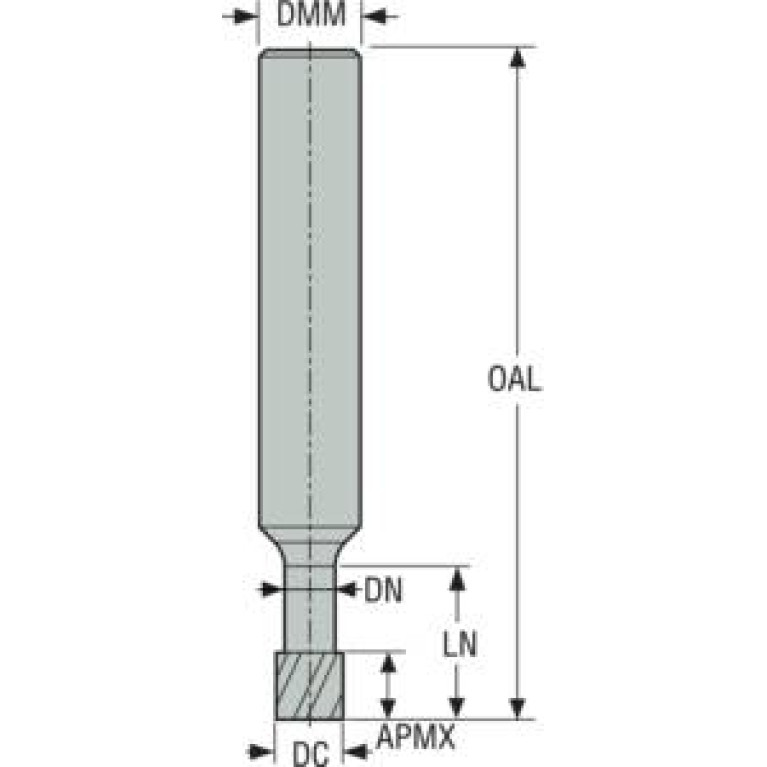

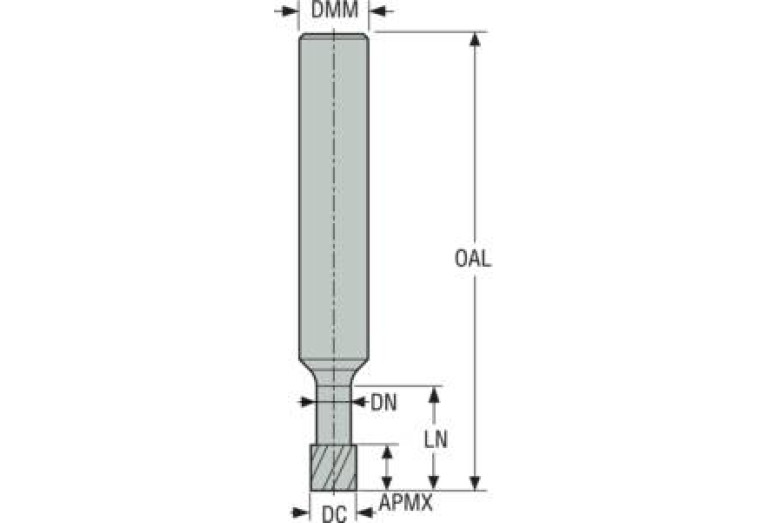

APMX Depth of cut maximum
22.225 mm
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
9.398 mm
Delivery state valid from
12/1/2023
DIN
ZYL03750135
FamilyProducts
NTM1209/16X18UN.375 ALCRN
GRDMFG Grade manufacturers designation
ALCRN
HAND Cutting direction
R - Right
ID Technical product number
17000442
Interface codes
J6 /
ISYC Subclass
303-09 - Thread end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
0375
LOC-03 DCONMS Diameter
9.525 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03750135
LPR Protruding length
39.675 mm
LS Shank length
61.605 mm
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
NTM1209/16X18UN.375 ALCRN
NameAnsi Identifying order number inch alternative
NTM120-9/16X18UN-.375
OAL Overall length
88.9 mm
RPMX Rotational speed maximum
10000 1/min
TDFR Thread diameter nominal fraction
9/16 in
TPI Threads per inch
18 1/in
Working process
No working processes available
WT Weight of item
0.082 kg
ZEFP Peripheral effective cutting edge count
4
