Главная Каталог продукции Toolunited 17 303-09 - Thread end mill NTM100NR.4X40UN.125 ALCRN

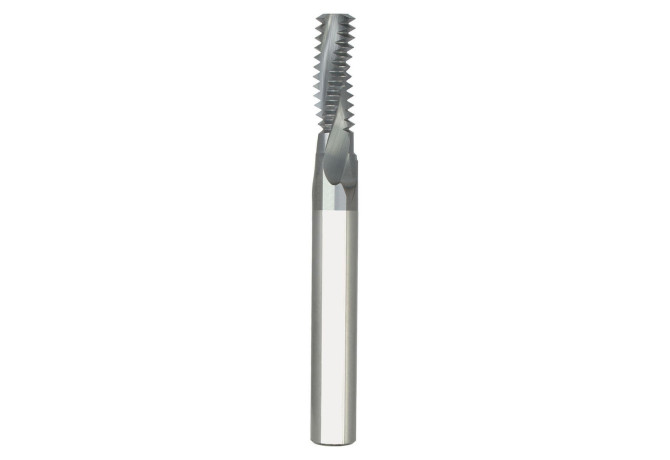

NTM100NR.4X40UN.125 ALCRN

NTM100NR.4X40UN.125 ALCRN NTM100NR.4X40UN.125 ALCRN NTM100NR.4X40UN.125 ALCRN NTM100NR.4X40UN.125 ALCRN

NTM100NR.4X40UN.125 ALCRN

Seco
Артикул: 17004413
В наличии
В корзину
Описание
Характеристики

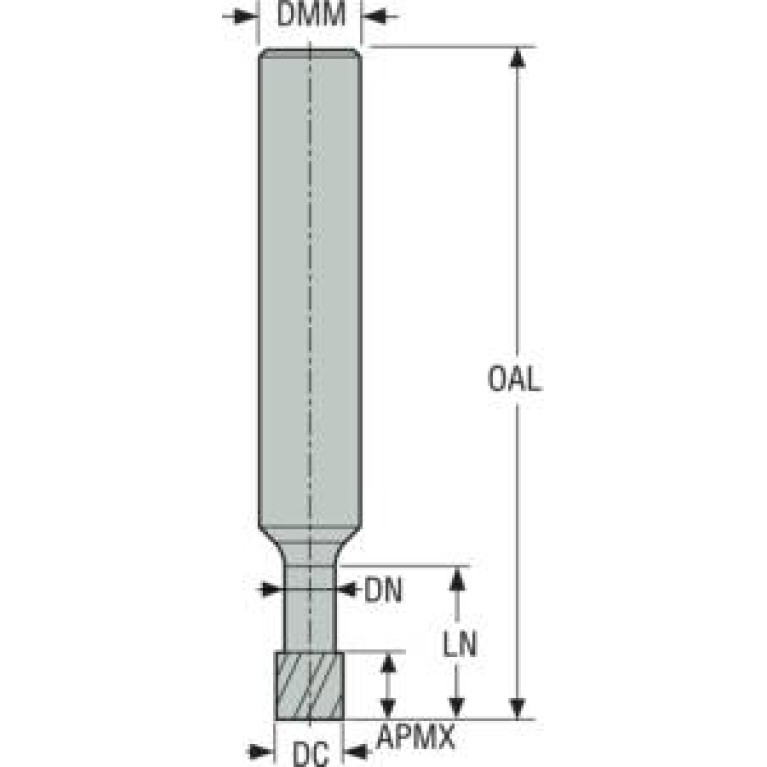

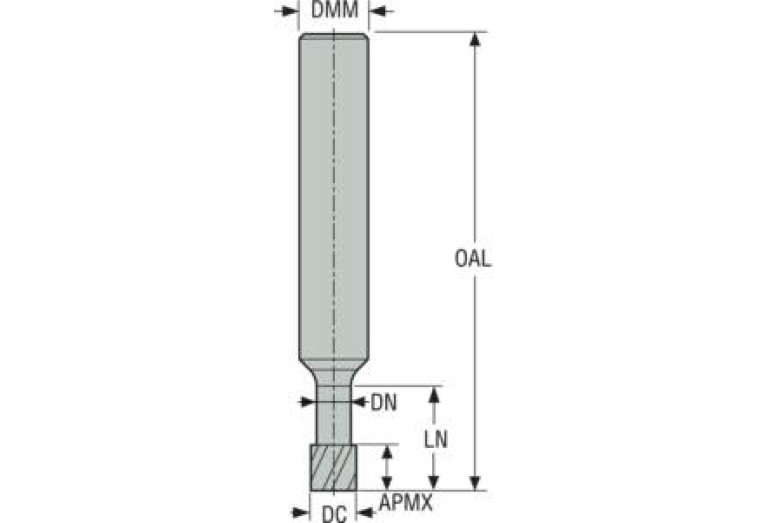

APMX Depth of cut maximum
4.445 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
2.159 mm
Delivery state valid from
12/1/2023
DIN
ZYL01250125
FamilyProducts
NTM100NR.4X40UN.125 ALCRN
GRDMFG Grade manufacturers designation
ALCRN
HAND Cutting direction
R - Right
ID Technical product number
17004413
Interface codes
J6 /
ISYC Subclass
303-09 - Thread end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
0125
LOC-03 DCONMS Diameter
3.175 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01250125
LPR Protruding length
25 mm
LS Shank length
45.276 mm
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
NTM100NR.4X40UN.125 ALCRN
NameAnsi Identifying order number inch alternative
NTM100-NR.4X40UN-.125

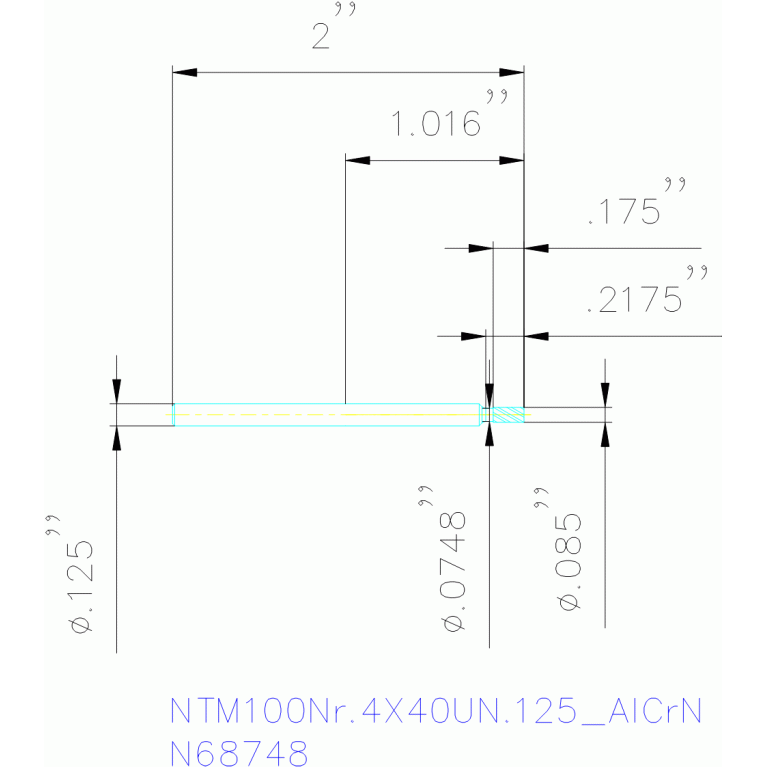

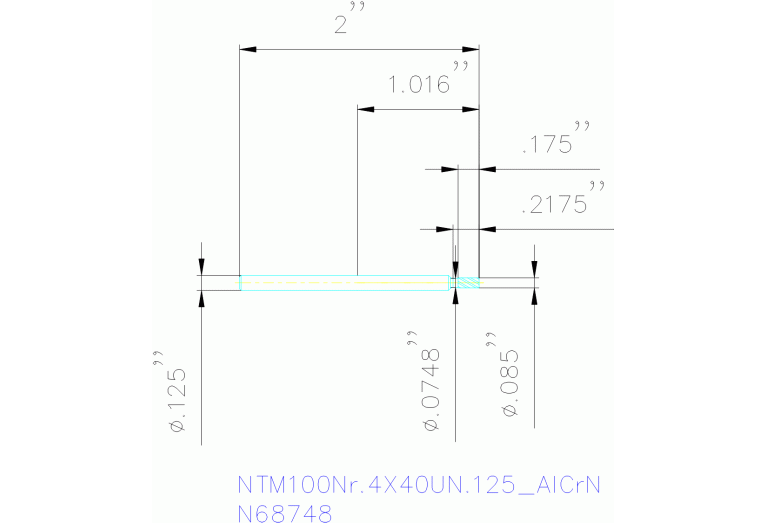

OAL Overall length
50.8 mm
RPMX Rotational speed maximum
10000 1/min
TDFR Thread diameter nominal fraction
4 in
TPI Threads per inch
40 1/in
Working process
No working processes available
WT Weight of item
0.006 kg
ZEFP Peripheral effective cutting edge count
3
