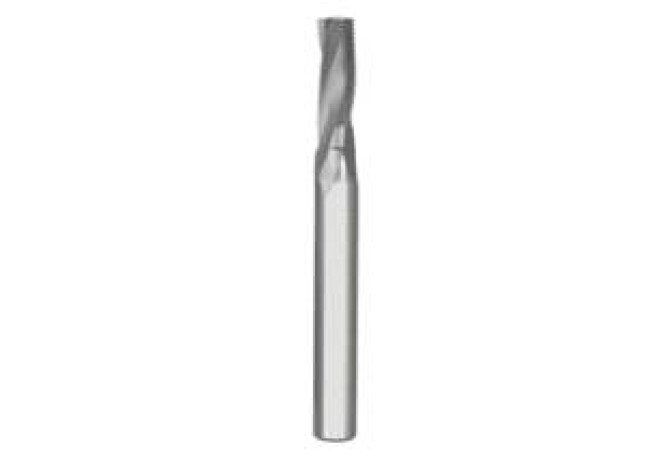

NTM1003/4X16UN.500 ALCRN

NTM1003/4X16UN.500 ALCRN NTM1003/4X16UN.500 ALCRN NTM1003/4X16UN.500 ALCRN NTM1003/4X16UN.500 ALCRN

NTM1003/4X16UN.500 ALCRN

Seco
Артикул: 17004465
В наличии
В корзину
Описание
Характеристики

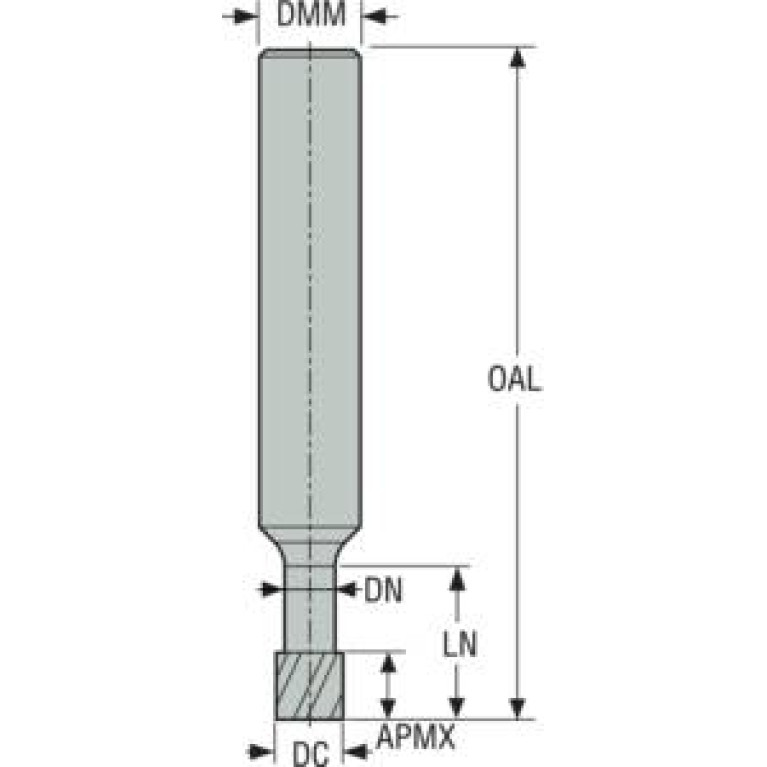

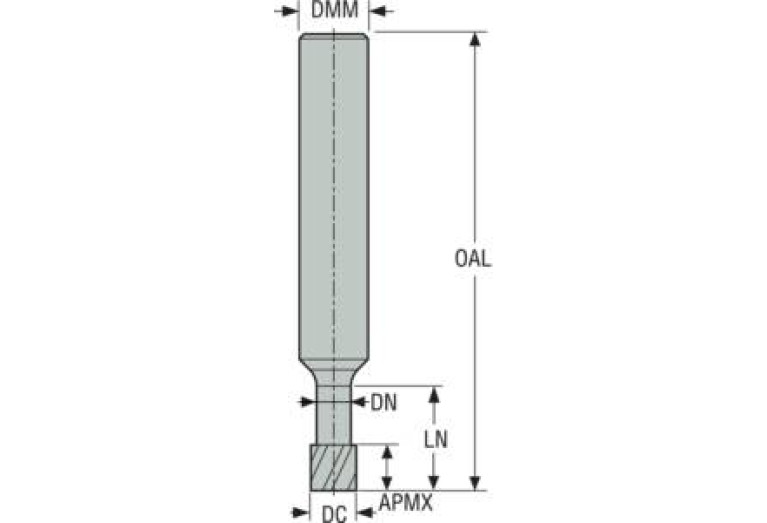

APMX Depth of cut maximum
31.75 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
12.573 mm
Delivery state valid from
12/1/2023
DIN
ZYL05000125
FamilyProducts
NTM1003/4X16UN.500 ALCRN
GRDMFG Grade manufacturers designation
ALCRN
HAND Cutting direction
R - Right
ID Technical product number
17004465
Interface codes
J6 /
ISYC Subclass
303-09 - Thread end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
0500
LOC-03 DCONMS Diameter
12.7 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL05000125
LPR Protruding length
45.237 mm
LS Shank length
63.564 mm
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
NTM1003/4X16UN.500 ALCRN
NameAnsi Identifying order number inch alternative
NTM100-3/4X16UN-.500

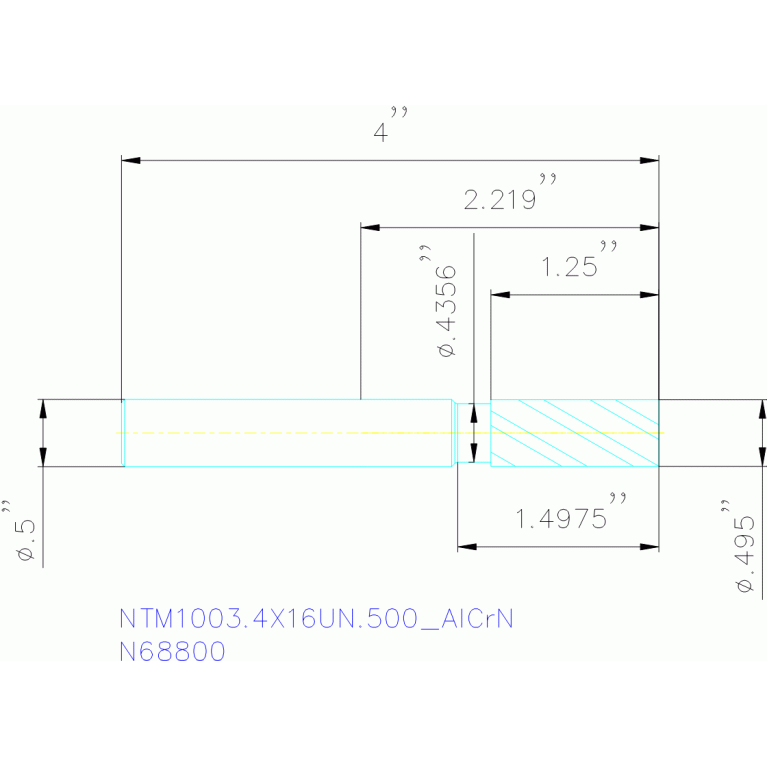

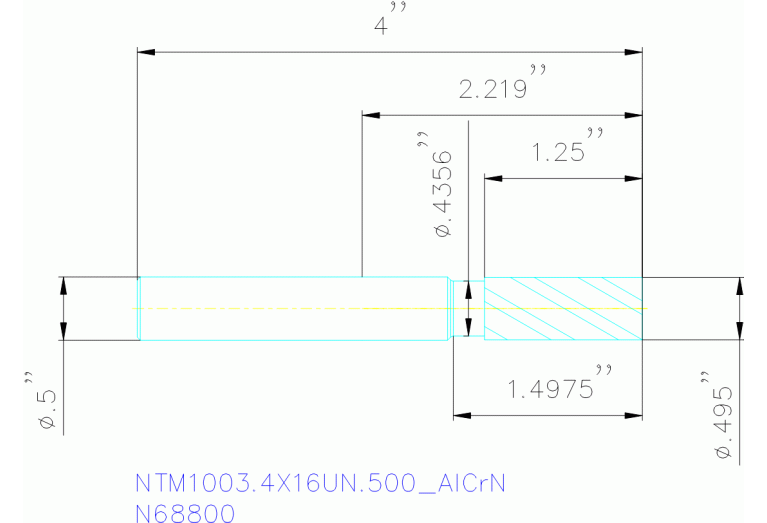

OAL Overall length
101.6 mm
RPMX Rotational speed maximum
10000 1/min
TDFR Thread diameter nominal fraction
3/4 in
TPI Threads per inch
16 1/in
Working process
No working processes available
WT Weight of item
0.159 kg
ZEFP Peripheral effective cutting edge count
4
