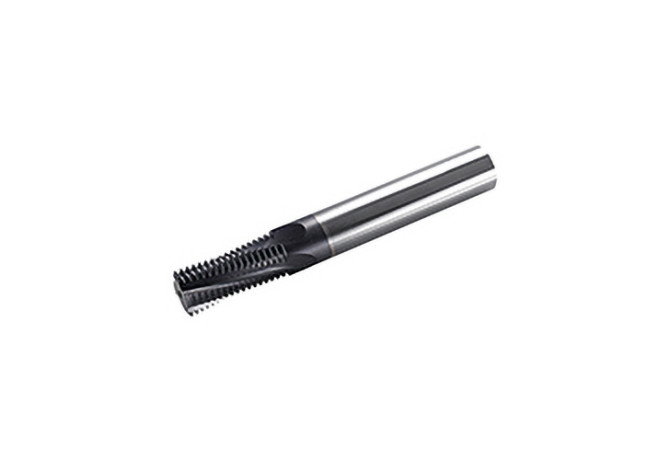

MTECB 08078C17 1.5ISO IN2005

Артикул: 5604853

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

17 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

TiAIN

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

7.8 mm

Delivery state

LA - Soon discontinued

DIN

ZYL00800115

FamilyProducts

Solid Carbide ISO-Threading (with central internal Coolant)

GRD2ND Standard designation of the grade 2nd application

HC-K40

GRDMFG Grade manufacturers designation

IN2005

GRDPRIO Standard designation of the grade main application

HC-M35

HAND Cutting direction

R - Right

ID Technical product number

5604853

Interface codes

J6 /

ISYC Subclass

303-09 - Thread end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800115

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

MTECB 08078C17 1.5ISO IN2005

OAL Overall length

64 mm

THFT Thread form type

TP Thread pitch

1.5 mm

Working process

No working processes available

WT Weight of item

0.038 kg

ZEFP Peripheral effective cutting edge count
