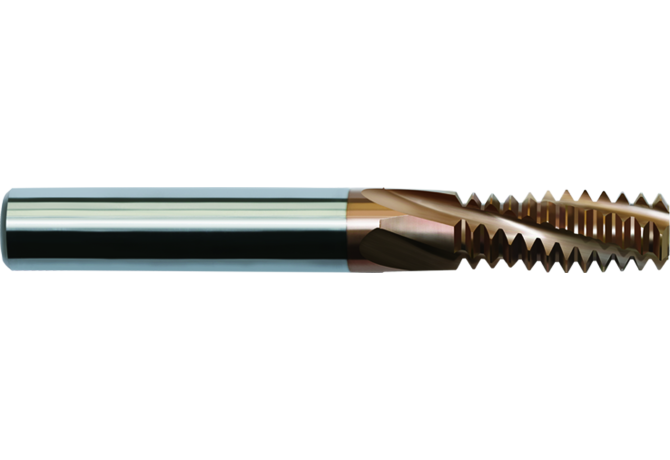

4111-M12*1.25 YK40F

Артикул: 4111-M12*1.25 YK40F

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

24 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

unbeschichtet

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

10.25 mm

Delivery state

SF - Made to order

DIN

ZYL01200105

FamilyProducts

Thread milling cutter, coated

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

YK40F

HAND Cutting direction

R - Right

ID Identifying order number

4111-M12*1.25 YK40F

Interface codes

J6 /

ISYC Subclass

303-09 - Thread end mill

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200105

MILTTY Mill tool type ISO

T - Thread cutter

OAL Overall length

75 mm

TP Thread pitch

1.25 mm

Working process

No working processes available

ZEFP Peripheral effective cutting edge count
