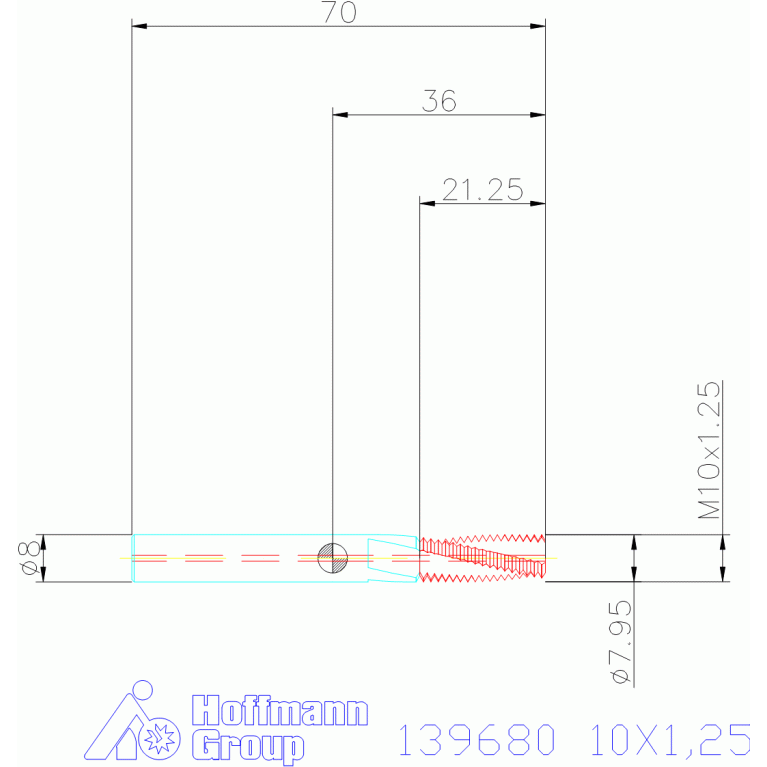

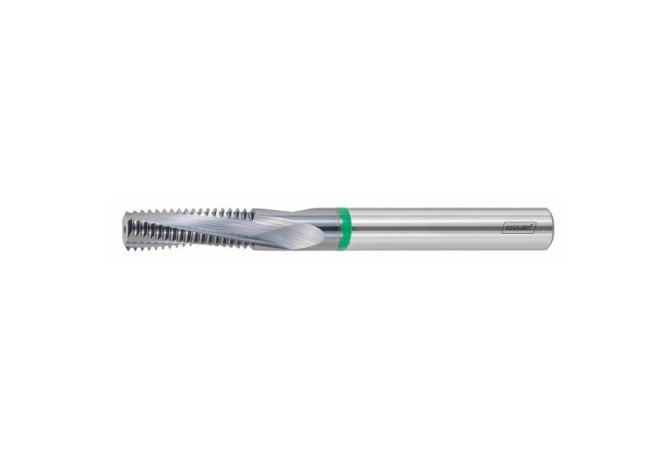

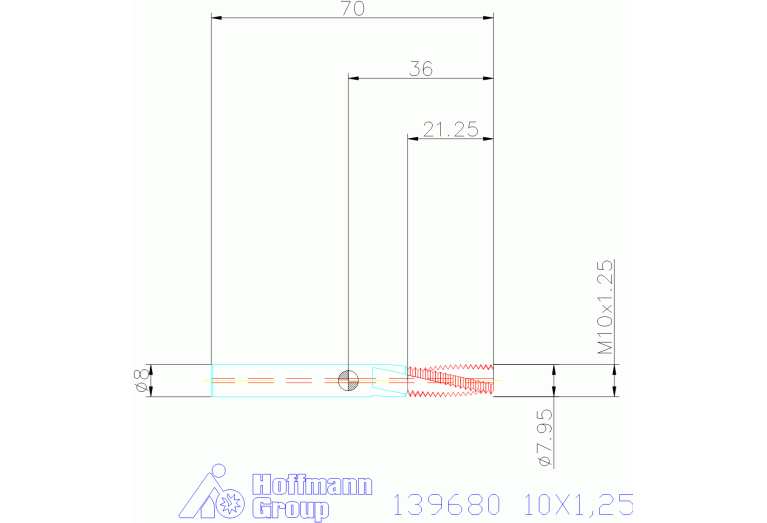

Главная Каталог продукции Toolunited 17 303-09 - Thread end mill 139680 10x1,25

139680 10x1,25

Артикул: 139680 10x1,25

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

20.6 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

2 - With Coolant exit, radial

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL00800115

DN Neck diameter

7.95 mm

FamilyProducts

Plain shank thread mill 2xD TiAlN

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

VHM

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-09 - Thread end mill

LN Neck length

20.6 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800115

LS Shank length

36 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

139680 10x1,25

OAL Overall length

70 mm

STDNO Standard

DIN13

TCDCONMS ISO-tolerance class shank diameter

TD Thread diameter

10 mm

THFT Thread form type

TP Thread pitch

1.25 mm

Working process

FSC - Thread milling

ZEFP Peripheral effective cutting edge count
