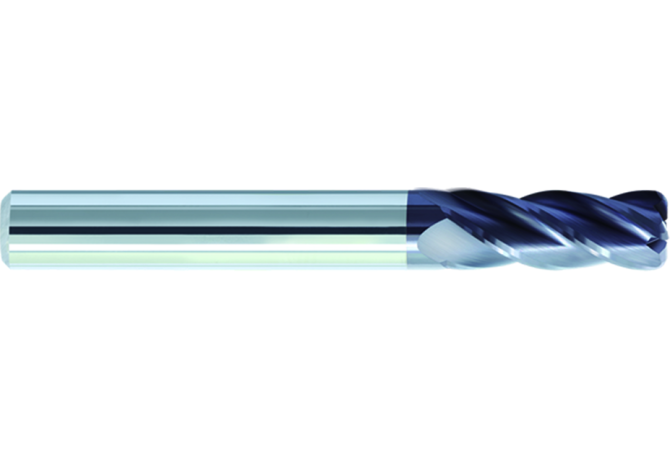

Главная Каталог продукции Toolunited 17 303-02 - Centre cutting end mill VSM-4R-D8.0R0.8 KMG405

VSM-4R-D8.0R0.8 KMG405

Артикул: VSM-4R-D8.0R0.8 KMG405

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

20 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

AlCrN

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

0.36 kg

DIN

ZYL00800105

F71 Number of corner designs

FamilyProducts

Torus mill

FHA Flute helix angle

41 Degree

GRDMFG Grade manufacturers designation

KMG405

HAND Cutting direction

R - Right

ID Identifying order number

VSM-4R-D8.0R0.8 KMG405

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

63 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800105

MILTTY Mill tool type ISO

N - Torus End Mill

OAL Overall length

63 mm

RE Corner radius

0.8 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
