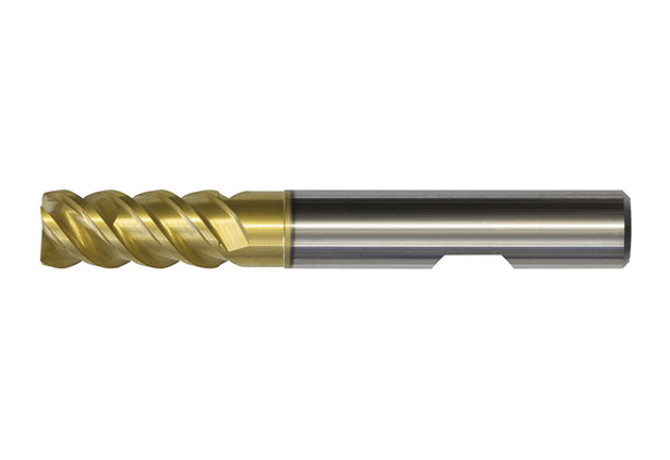

Главная Каталог продукции Toolunited 17 303-02 - Centre cutting end mill SF.H.L440.2000.L.Z4.F0010A.HB SCPH215L

SF.H.L440.2000.L.Z4.F0010A.HB SCPH215L

Артикул: WL440200311

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

38 mm

CHW Corner chamfer width

0.1 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

CE - Ceratizit

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL02001005

DN Neck diameter

19.5 mm

F71 Number of corner designs

FamilyProducts

End mill WL440-L

FHA Flute helix angle

52 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

52 Degree

GAMP Rake angle axial

-10 Degree

GRDMFG Grade manufacturers designation

SCPH215L

GRDPRIO Standard designation of the grade main application

HC-H15

HAND Cutting direction

R - Right

ID Technical product number

WL440200311

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

KCH Corner chamfer angle

45 Degree

LN Neck length

52 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$05

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02001005

Name Identifying order number

SF.H.L440.2000.L.Z4.F0010A.HB SCPH215L

OAL Overall length

104 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
