Главная Каталог продукции Toolunited 17 303-02 - Centre cutting end mill SCM780-0500Z04R-F0010HB-HP921

SCM780-0500Z04R-F0010HB-HP921

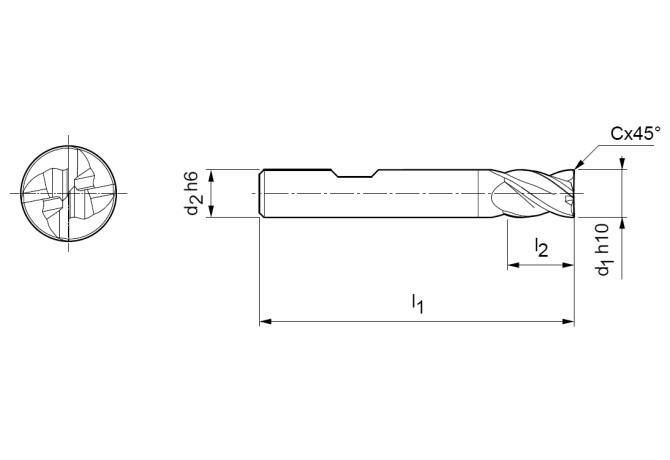

SCM780-0500Z04R-F0010HB-HP921 SCM780-0500Z04R-F0010HB-HP921

SCM780-0500Z04R-F0010HB-HP921

Mapal
Артикул: 30656946
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
9 mm
BMC Body material code
H - Solid carbide
CHW Corner chamfer width
0.1 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
MP - Mapal
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
5 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/10/2017
DIN
ZYL00601005
F71 Number of corner designs
1
FamilyProducts
ECU-Mill-Uni-LV Kurze Ausführung
FHA Flute helix angle
36 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
38.5 Degree
GRDMFG Grade manufacturers designation
HP921
HAND Cutting direction
R - Right
ID Technical product number
30656946
Interface codes
J6 /
ISYC Subclass
303-02 - Centre cutting end mill
KCH Corner chamfer angle
45 Degree
LF Functional length
54 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00601005
Name Identifying order number
SCM780-0500Z04R-F0010HB-HP921
OAL Overall length
54 mm
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
No working processes available
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
ZNC Cutting edge centre count
2
