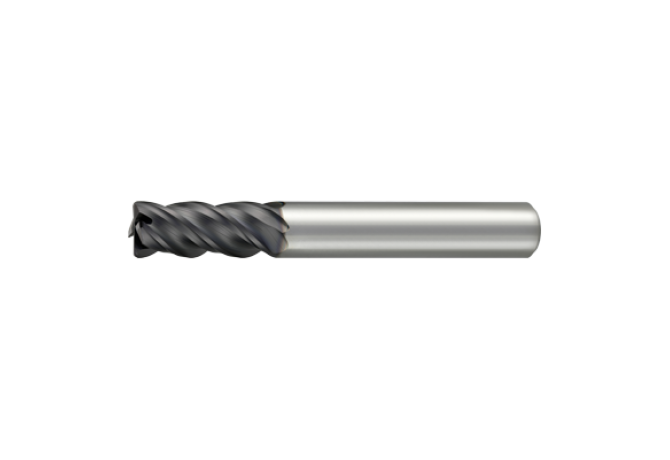

Главная Каталог продукции Toolunited 17 303-02 - Centre cutting end mill MPMHVRBD1200R050

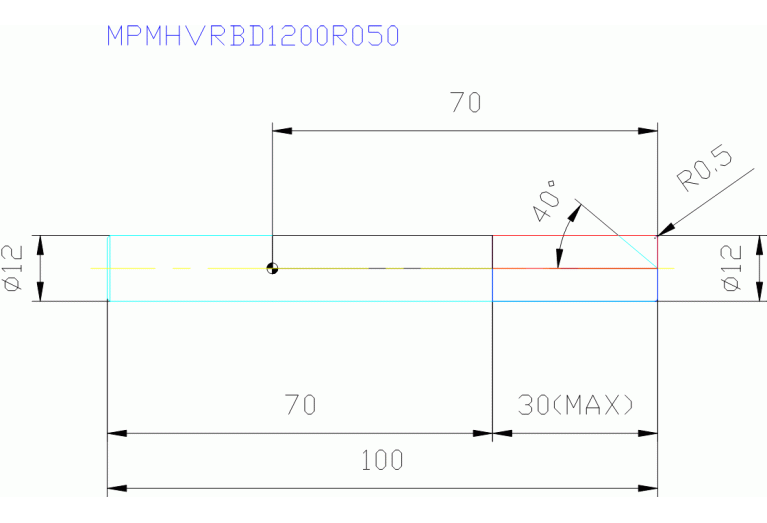

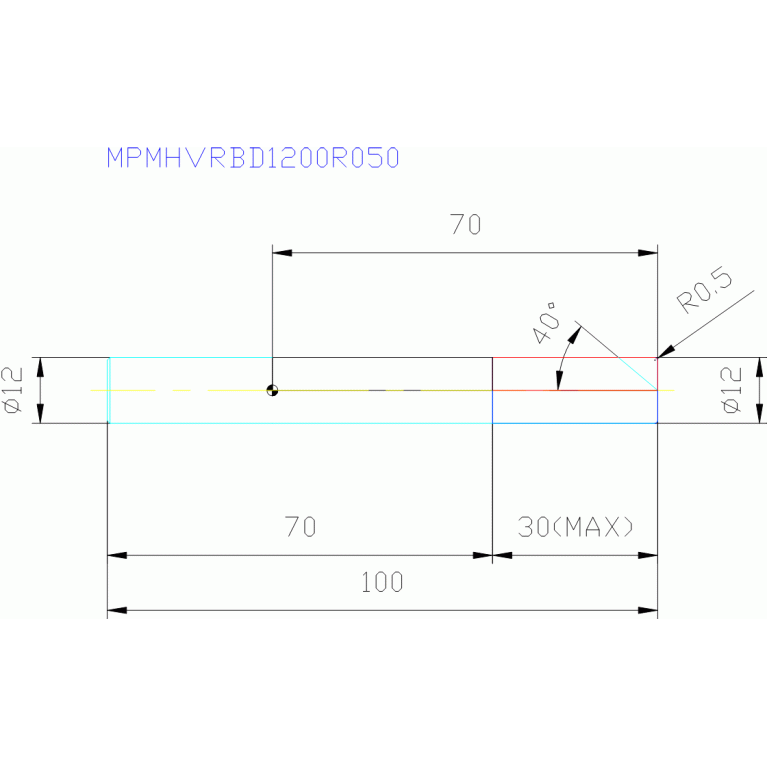

MPMHVRBD1200R050

Артикул: 10560501

В наличии

В корзину

Описание

Характеристики

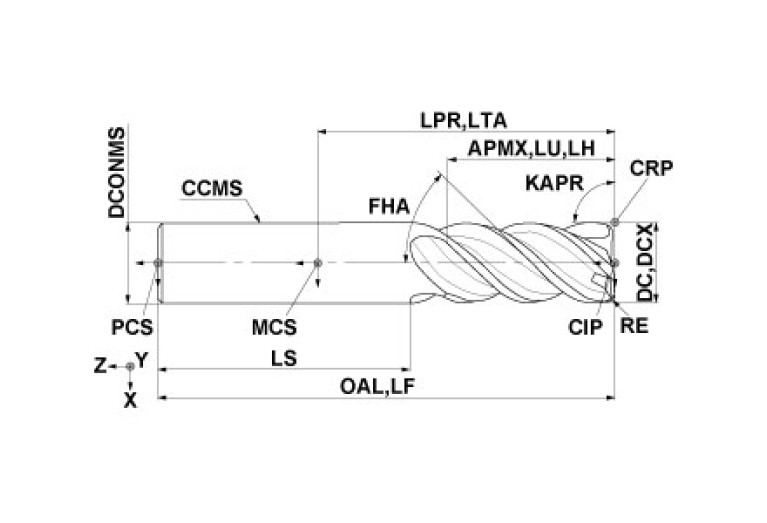

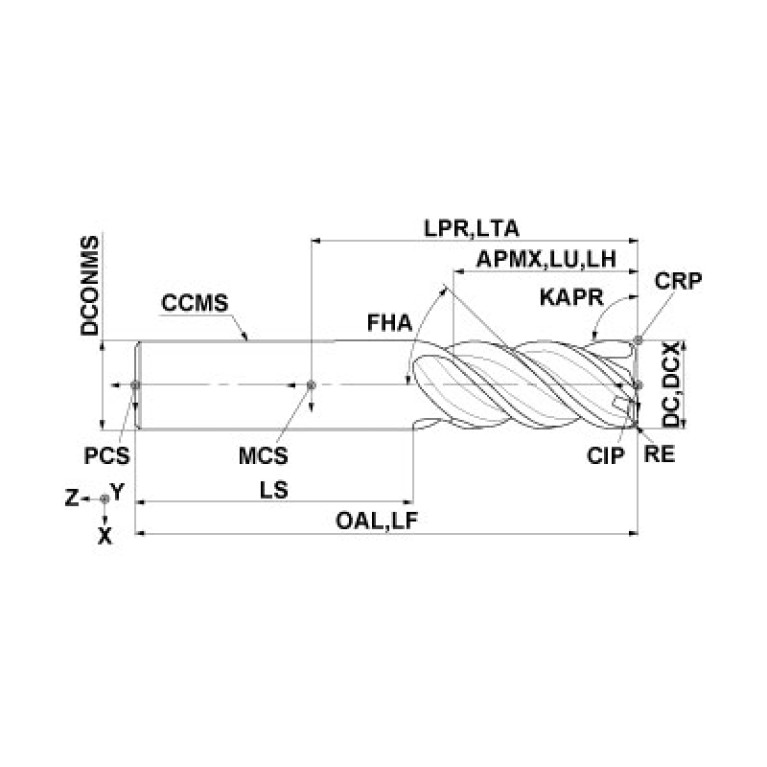

APMX Depth of cut maximum

30 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

AlTiCrN

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2024

DIN

ZYL01200105

FamilyProducts

Corner radius, Medium cut length, 4 flute, Irregular helix flutes

FHA Flute helix angle

40 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

10560501

Interface codes

J6 / J61

ISO

ZYL01G1200h$06

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

100 mm

LH Head length

30 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G1200h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200105

LPR Protruding length

70 mm

LS Shank length

70 mm

LU Usable length

30 mm

Name Identifying order number

MPMHVRBD1200R050

OAL Overall length

100 mm

RE Corner radius

0.5 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
