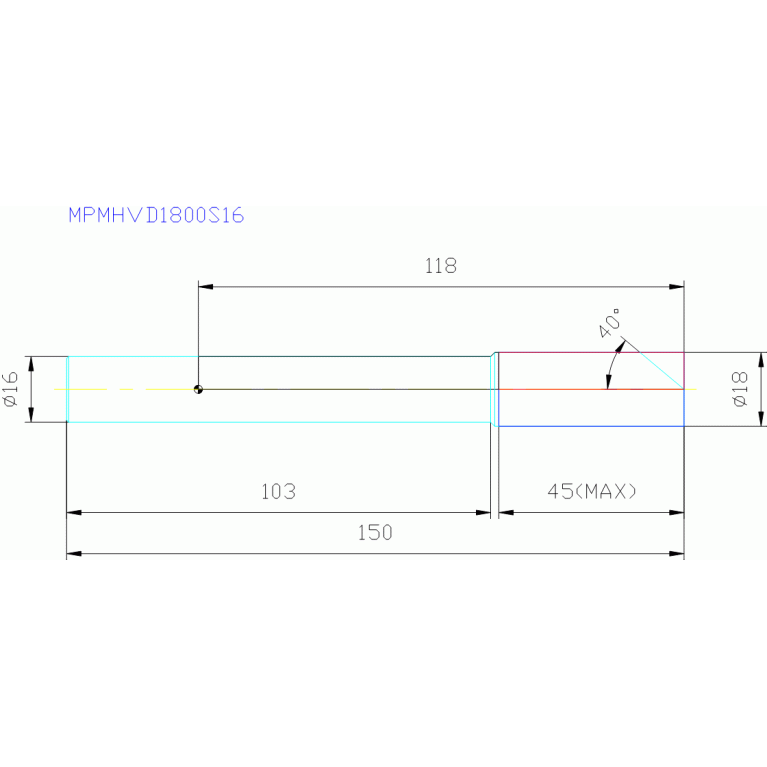

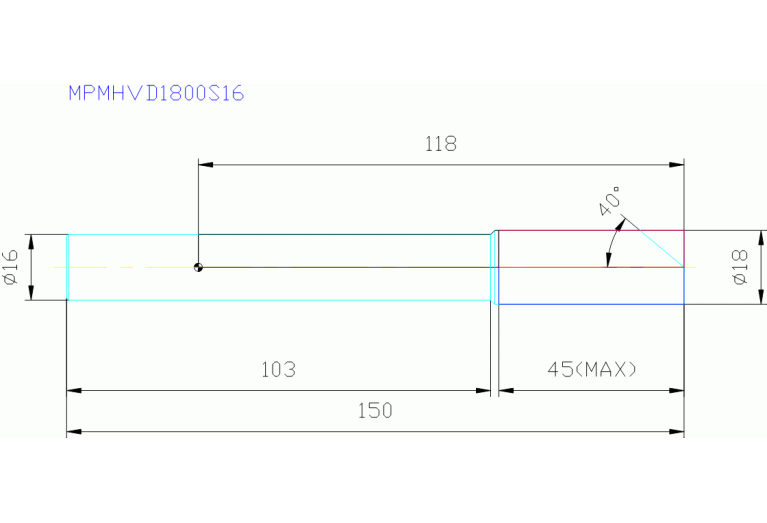

MPMHVD1800S16

Артикул: 10578032

В наличии

В корзину

Описание

Характеристики

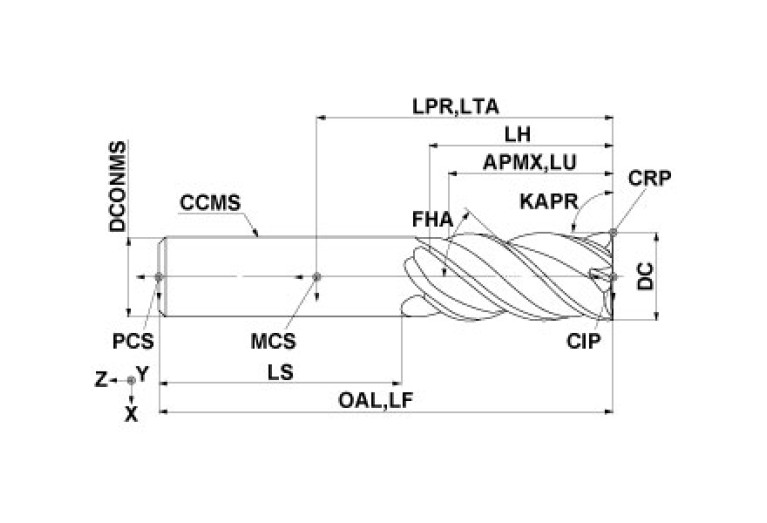

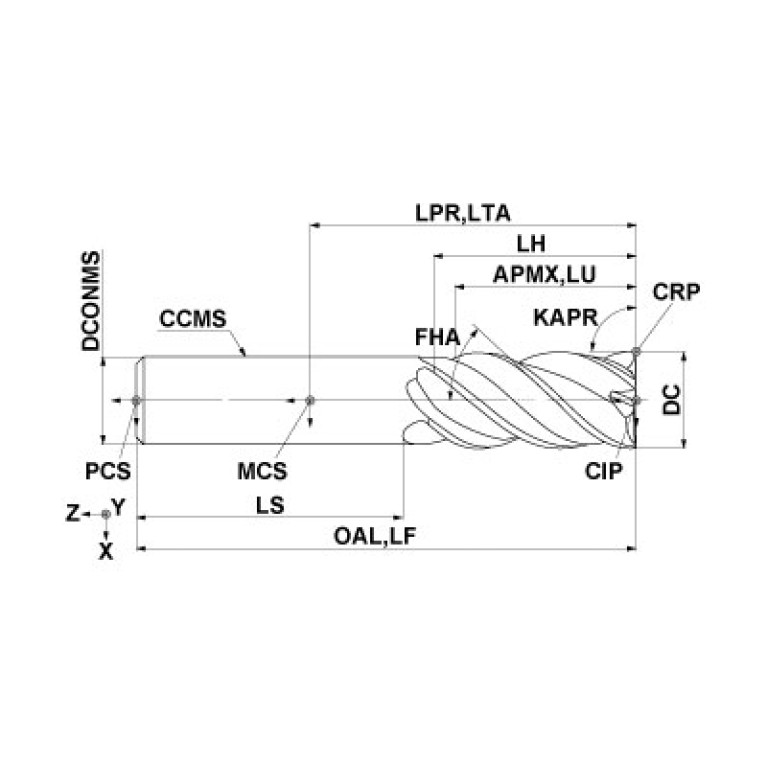

APMX Depth of cut maximum

45 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

AlTiCrN

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

18 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2024

DIN

ZYL01600105

FamilyProducts

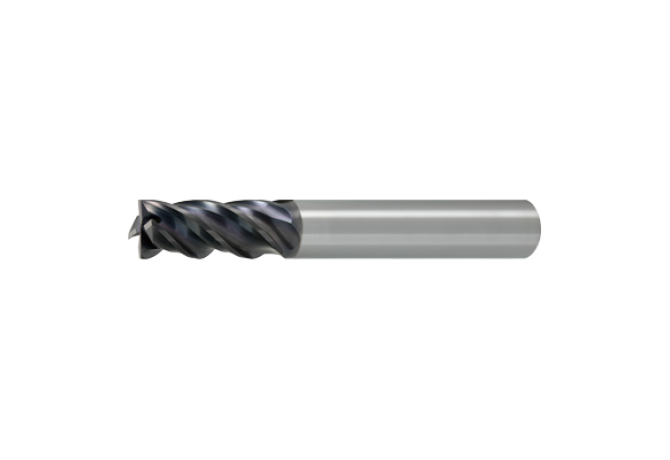

End mill, medium cut length, 4 flutes, irregular helix flute

FHA Flute helix angle

40 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

10578032

Interface codes

J6 / J61

ISO

ZYL01G1600h$06

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

150 mm

LH Head length

47 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G1600h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600105

LPR Protruding length

118 mm

LS Shank length

103 mm

LU Usable length

45 mm

Name Identifying order number

MPMHVD1800S16

OAL Overall length

150 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
