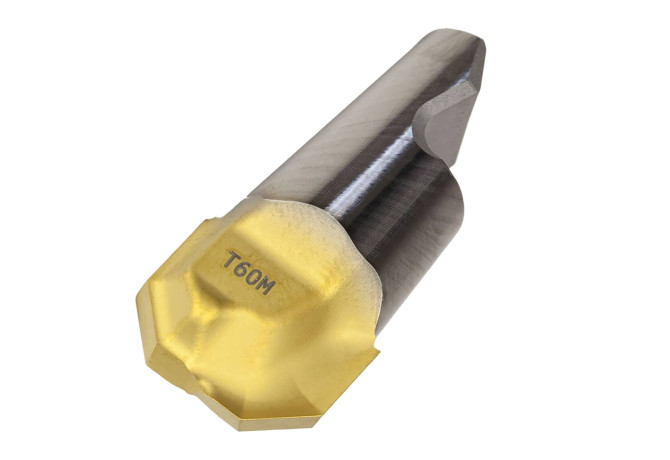

Главная Каталог продукции Toolunited 17 303-02 - Centre cutting end mill MM16-16011-4540-E06 T60M

MM16-16011-4540-E06 T60M

MM16-16011-4540-E06 T60M MM16-16011-4540-E06 T60M MM16-16011-4540-E06 T60M MM16-16011-4540-E06 T60M

MM16-16011-4540-E06 T60M

Seco
Артикул: 74004992
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
3.9 mm
CHW Corner chamfer width
4.1 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
7.69 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
SMM01600105
F71 Number of corner designs
1
FamilyProducts
MM16-16011-4540-E06 T60M
FHA Flute helix angle
15 Degree
GAMF Rake angle radial
15 Degree
GAMP Rake angle axial
4 Degree
GRDMFG Grade manufacturers designation
T60M
ID Technical product number
74004992
Interface codes
J6 /
ISYC Subclass
303-02 - Centre cutting end mill
KCH Corner chamfer angle
45 Degree
LF Functional length
13.25 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SMM
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0160
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SMM01600105
Name Identifying order number
MM16-16011-4540-E06 T60M
NameAnsi Identifying order number inch alternative
MM16-0.630-45.16-E06
Working process
No working processes available
WT Weight of item
0.037 kg
ZEFF Face effective cutting edge count
1
ZEFP Peripheral effective cutting edge count
1
