Главная Каталог продукции Toolunited 17 303-02 - Centre cutting end mill MM EFF120T2R1.2-6T08H IC903

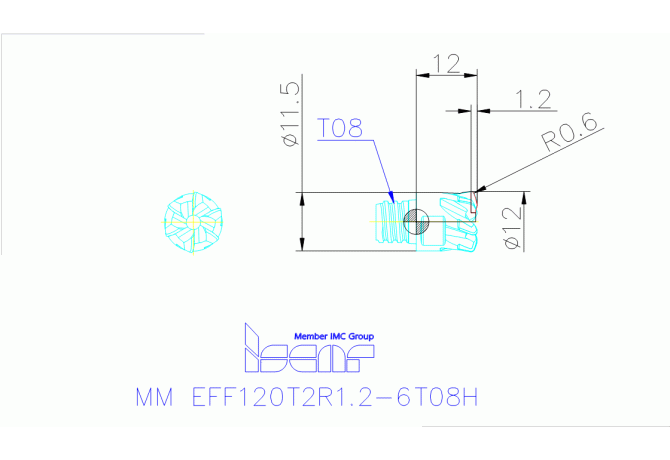

MM EFF120T2R1.2-6T08H IC903

Артикул: 5668260

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

0.65 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

12 mm

DCP Data chip provision

0 - Without data chip

DIN

SAI00800195

F71 Number of corner designs

FamilyProducts

4, 6 Flute Solid Carbide Heads for Milling at Very Fast Feeds and Small D.O.C.

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

IC903

HAND Cutting direction

R - Right

ID Technical product number

5668260

Interface codes

J6 / J61

ISO

SAI01C0080$$$$

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

12.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

11.5 mm

LOC-03 ISO

SAI01C0080$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI00800195

Name Identifying order number

MM EFF120T2R1.2-6T08H IC903

RE Corner radius

1.2 mm

RMPX Ramping angle maximum

3 Degree

THSZMS Connection thread nominal size machine side

T08

Working process

No working processes available

WT Weight of item

0.02 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
