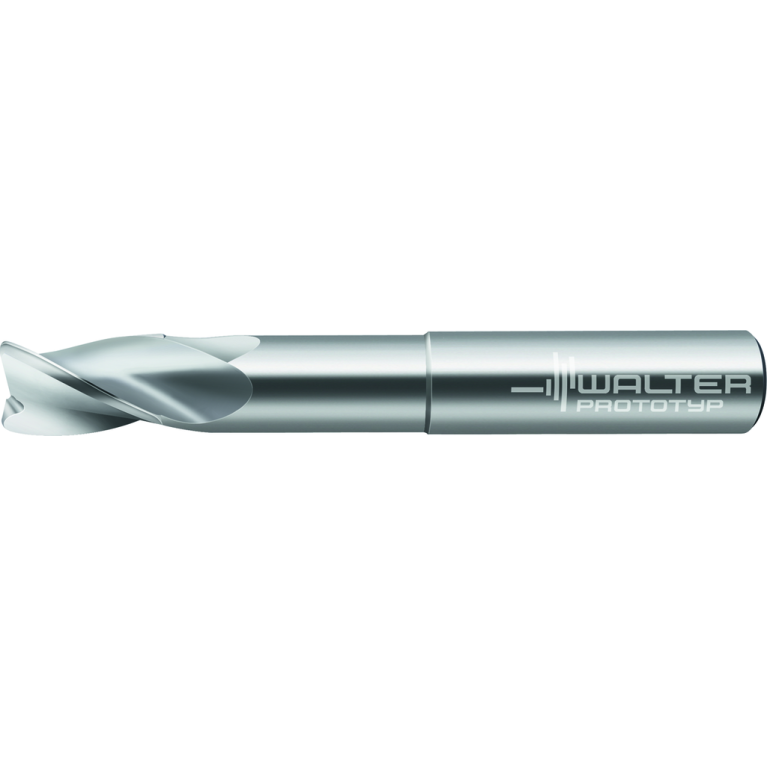

Главная Каталог продукции Toolunited 17 303-02 - Centre cutting end mill MB266.12.7A3X305C-WJ30UU

MB266.12.7A3X305C-WJ30UU

Артикул: 7089360

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

31.75 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

unbeschichtet

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

12.7 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL05000135

DN Neck diameter

11.938 mm

F71 Number of corner designs

FamilyProducts

Solid carbide shoulder/slot mills MB266

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

10 Degree

GAMP Rake angle axial

5 Degree

GRDMFG Grade manufacturers designation

WJ30UU

HAND Cutting direction

R - Right

ID Technical product number

7089360

Interface codes

J6 / J61

ISO

ZYL01R5000h$05

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

127 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

3 Inch with coolant

LOC-03 CZCMS Size code

0500

LOC-03 DCONMS Diameter

12.7 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$05

LOC-03 ISO

ZYL01R5000h$05

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL05000135

LPR Protruding length

81.7 mm

Name Identifying order number

MB266.12.7A3X305C-WJ30UU

OAL Overall length

127 mm

RE Corner radius

3.048 mm

RMPX Ramping angle maximum

10 Degree

RPMX Rotational speed maximum

31183 1/min

STDNO Standard

PWZ-NORM XL

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling,FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.2 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
