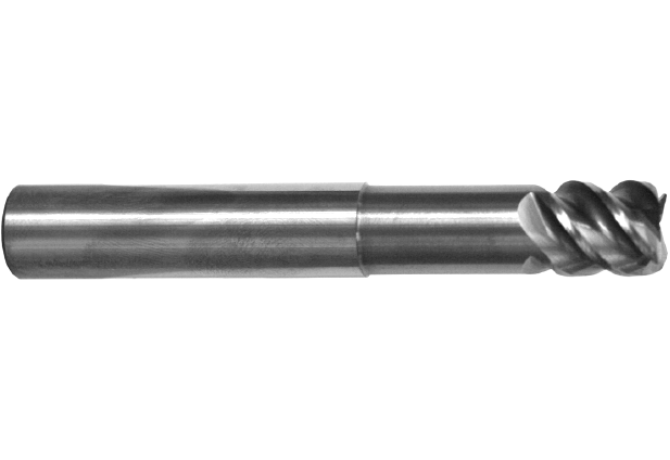

5585R554HHR30-1200 KMG405
5585R554HHR30-1200 KMG405
Артикул:
5585R554HHR30-1200 KMG405
В наличии
Характеристики
APMX Depth of cut maximum
12 mm
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
AlCrN
COMPC Company code
ZCC - ZCC Cutting Tools
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
12 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1.02 kg
DIN
ZYL01200105
DN Neck diameter
11 mm
F71 Number of corner designs
1
FamilyProducts
ZCC CT 4-fl ute radius end mills for machining of steel (HRC>48)
FHA Flute helix angle
55 Degree
GRDMFG Grade manufacturers designation
KMG405
HAND Cutting direction
R - Right
ID Identifying order number
5585R554HHR30-1200 KMG405
Interface codes
J6 /
ISYC Subclass
303-02 - Centre cutting end mill
LF Functional length
83 mm
LN Neck length
37 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01200105
MILTTY Mill tool type ISO
N - Torus End Mill
OAL Overall length
83 mm
RE Corner radius
3 mm
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
FEC - Square shoulder milling,FFO - Die milling,FPL - Face milling,FZI - Circular milling
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
ZNC Cutting edge centre count
2
