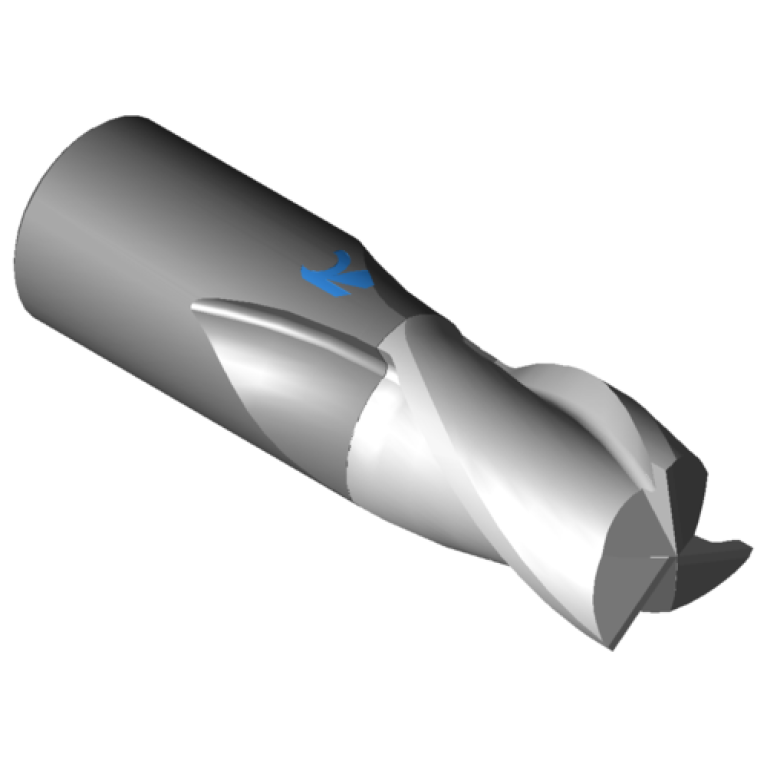

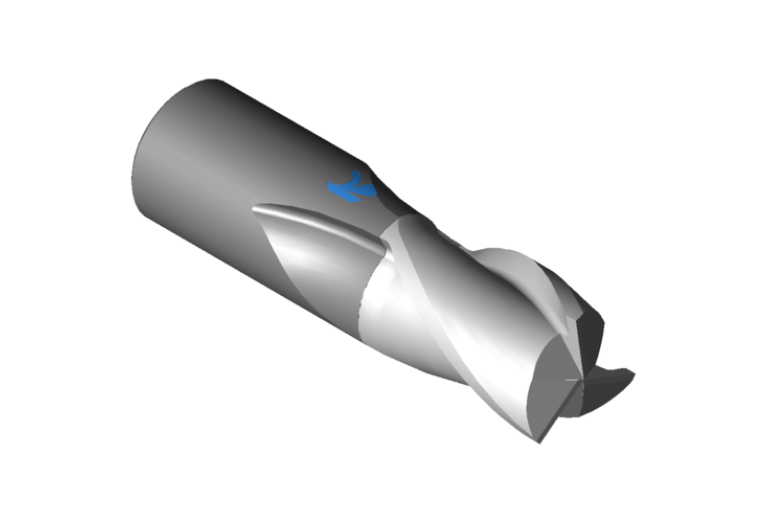

Главная Каталог продукции Toolunited 17 303-02 - Centre cutting end mill 50053161

50053161

Артикул: 50053161

В наличии

В корзину

Описание

Характеристики

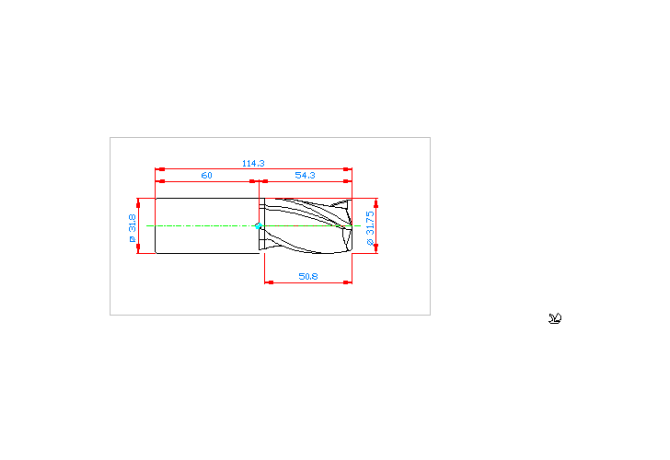

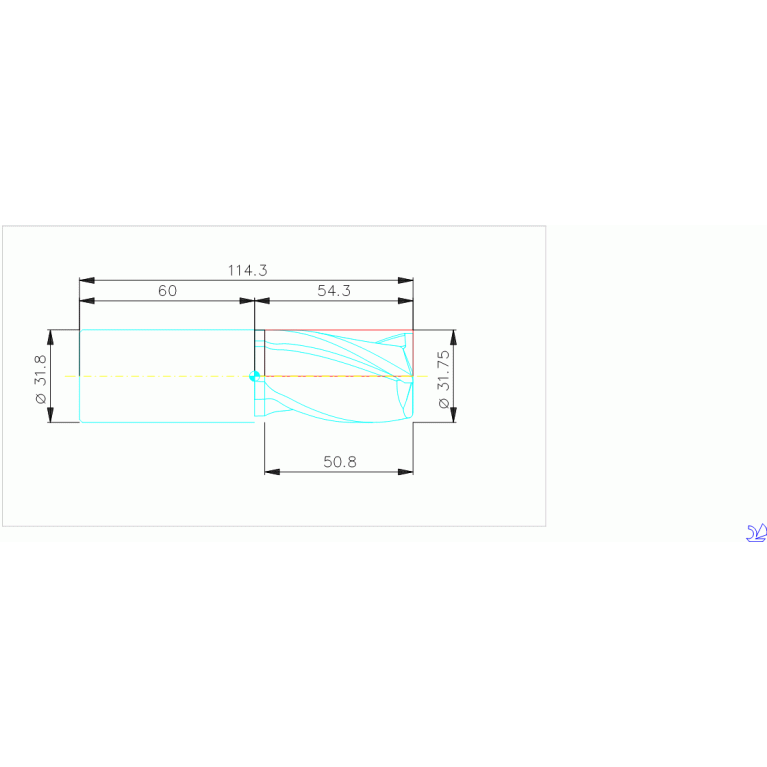

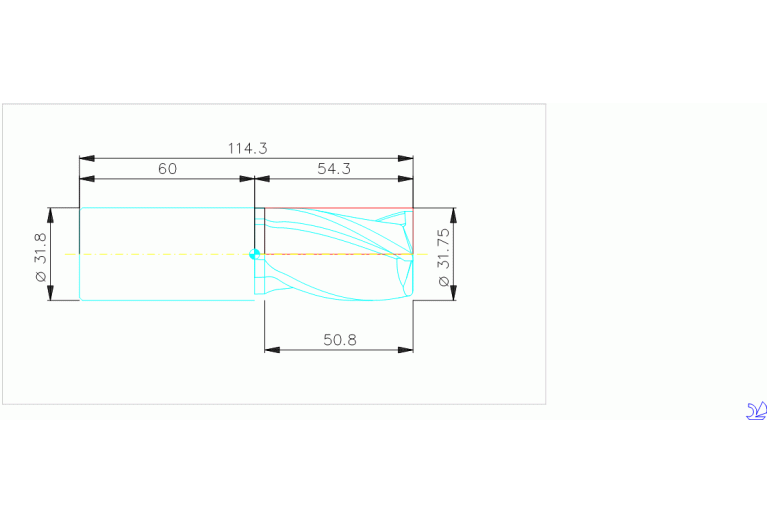

APMX Depth of cut maximum

50.8 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

OSG

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

31.75 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

7/1/2016

DIN

ZYL12500125

F71 Number of corner designs

FamilyProducts

end mill

FHA Flute helix angle

30.76667 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

1250

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL12500125

Name Identifying order number

50053161

OAL Overall length

114.3 mm

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
