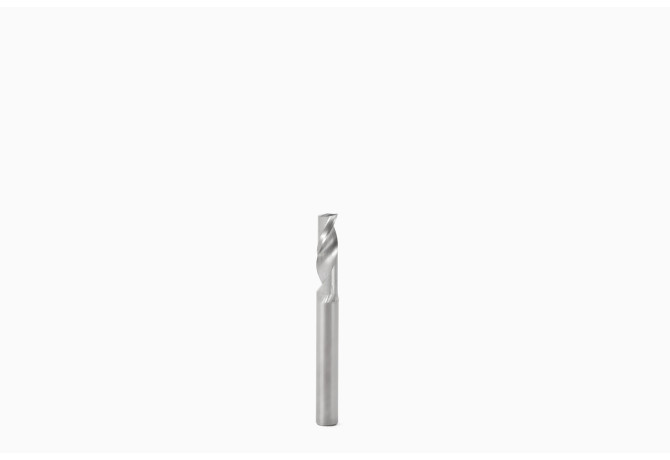

Главная Каталог продукции Toolunited 17 303-02 - Centre cutting end mill 28050

28050

Артикул: 00029363

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

16 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL00500105

F71 Number of corner designs

FamilyProducts

28050

FHA Flute helix angle

38 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

38 Degree

GAMP Rake angle axial

18 Degree

HAND Cutting direction

R - Right

ID Technical product number

00029363

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0050

LOC-03 DCONMS Diameter

5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00500105

LS Shank length

28 mm

Name Identifying order number

28050

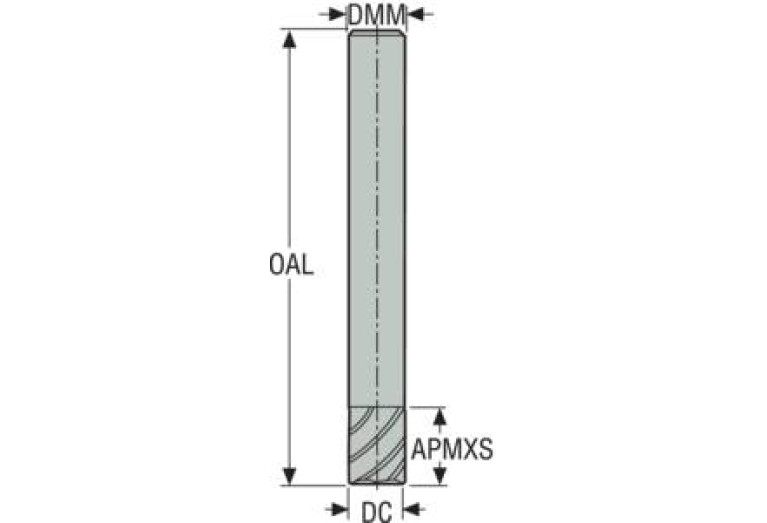

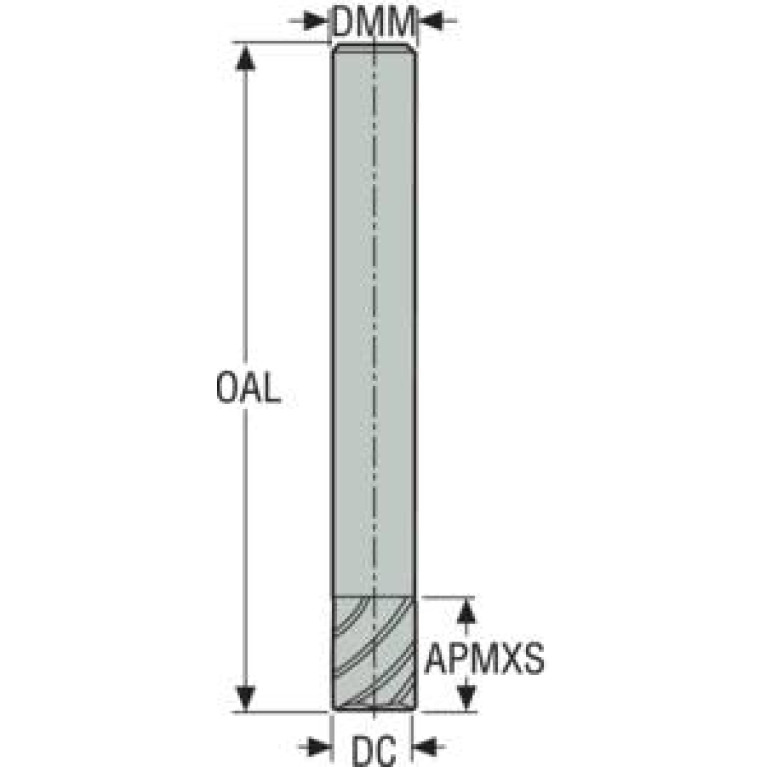

OAL Overall length

60 mm

RMPX Ramping angle maximum

45 Degree

Working process

No working processes available

WT Weight of item

0.014 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
