Главная Каталог продукции Toolunited 17 303-02 - Centre cutting end mill 170160-MEGA-64

170160-MEGA-64

170160-MEGA-64 170160-MEGA-64 170160-MEGA-64

170160-MEGA-64

Seco
Артикул: 02452933
В наличии
В корзину
Описание
Характеристики

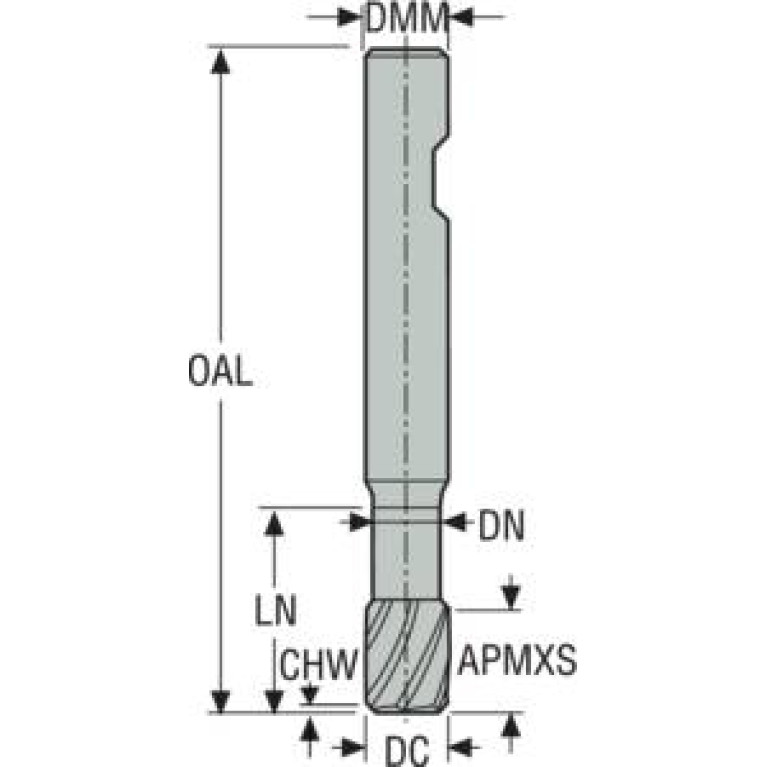

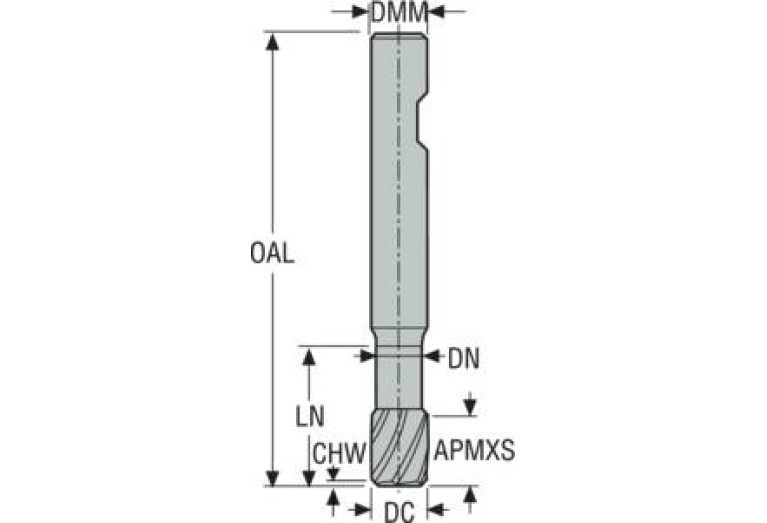

APMX Depth of cut maximum
16 mm
CHW Corner chamfer width
0.3 mm
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
MEGA-64
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01601005
DN Neck diameter
15.4 mm
F71 Number of corner designs
1
FamilyProducts
170160-MEGA-64
FHA Flute helix angle
50 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
50 Degree
GAMP Rake angle axial
-12 Degree
HAND Cutting direction
R - Right
ID Technical product number
02452933
Interface codes
J6 /
ISYC Subclass
303-02 - Centre cutting end mill
KCH Corner chamfer angle
45 Degree
LN Neck length
29 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01601005
LS Shank length
48 mm
Name Identifying order number
170160-MEGA-64
OAL Overall length
80 mm
RMPX Ramping angle maximum
1 Degree
Working process
No working processes available
WT Weight of item
0.206 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
