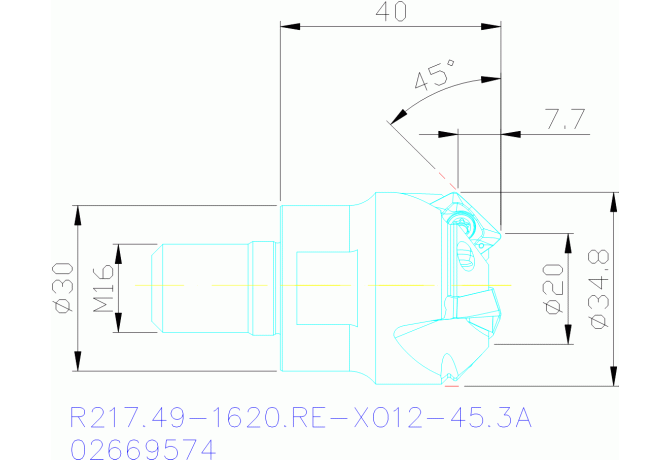

R217.49-1620.RE-XO12-45.3A

Артикул: 02669574

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

15 Degree

APMX Depth of cut maximum

7.7 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

5.03 mm

CCONMS Connection count machine side

CICT Cutting item count

COMPC Company code

SO - SECO Tools

D6A Wiper edge length Pos. A

2 mm

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

34.8 mm

Delivery state valid from

3/14/2020

DIN

SAD01600105

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

R217.49-1620.RE-XO12-45.3A

GAMF Rake angle radial

-14 Degree

GAMP Rake angle axial

3 Degree

HAND Cutting direction

R - Right

ID Technical product number

02669574

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

ISO

SCM01G3000$$$$

ISYC Subclass

307-02 - Non-centre cutting single row V-groove end mill

KAPR Tool cutting edge angle

45 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAD Screw mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 ISO

SCM01G3000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAD01600105

Name Identifying order number

R217.49-1620.RE-XO12-45.3A

NameAnsi Identifying order number inch alternative

R217.49-1620.RE-XO12-45-3A

RPMX Rotational speed maximum

17400 1/min

THSZMS Connection thread nominal size machine side

M16

Working process

No working processes available

WT Weight of item

0.221 kg

ZEFP Peripheral effective cutting edge count
