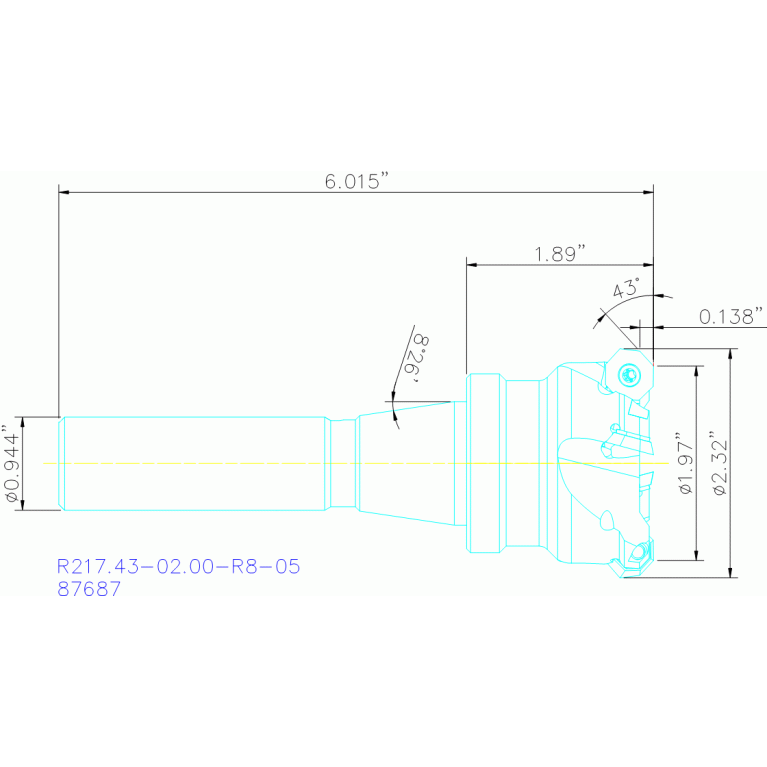

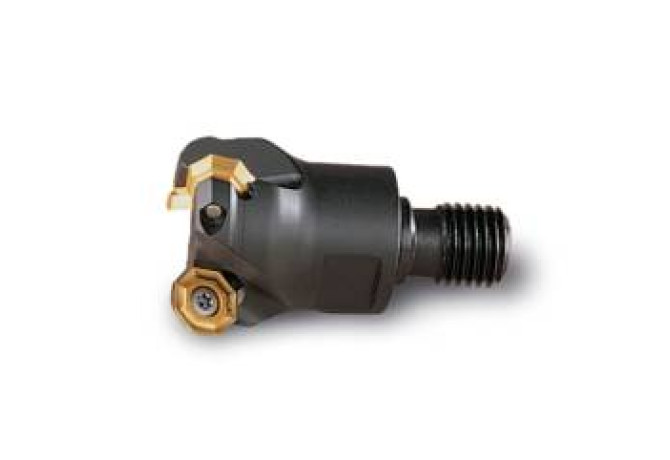

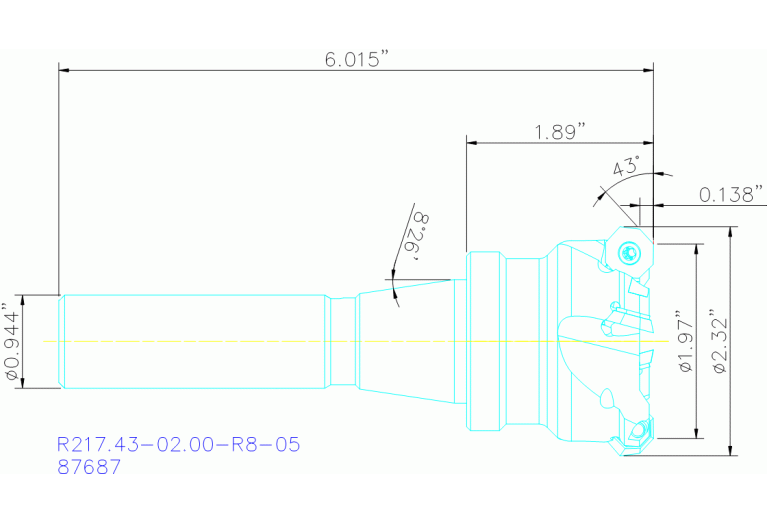

Главная Каталог продукции Toolunited 17 307-02 - Non-centre cutting single row V-groove end mill R217.43-02.00-R8-05

R217.43-02.00-R8-05

R217.43-02.00-R8-05 R217.43-02.00-R8-05 R217.43-02.00-R8-05 R217.43-02.00-R8-05

R217.43-02.00-R8-05

Seco
Артикул: 00087687
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
135 Degree
A2A Clearance angle major Pos. A
26 Degree

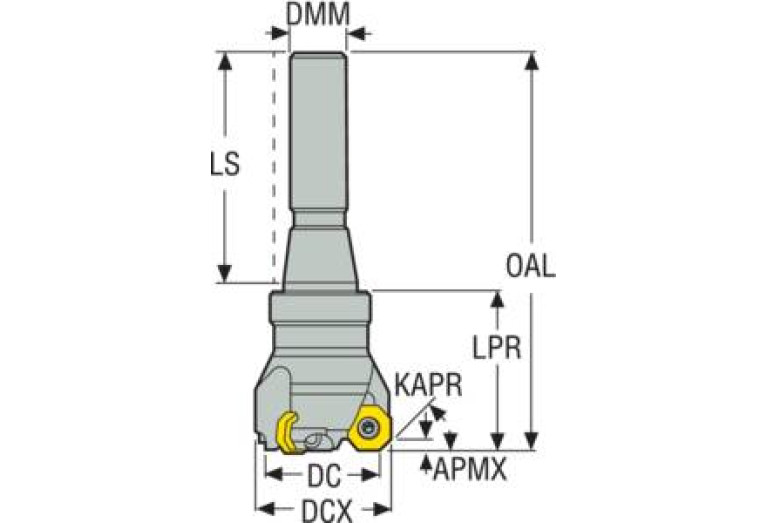

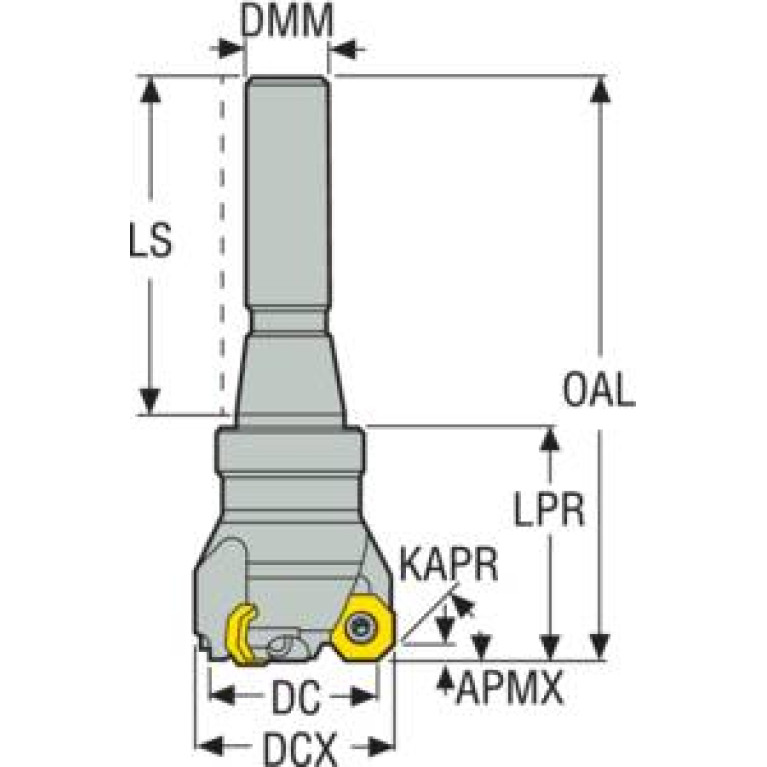

APMX Depth of cut maximum
3.51 mm
B1A Cutting edge length Pos. A
5.2951 mm
B3A Inscribed circle diameter Pos. A
12.79 mm
BLDA Tool style code Position A
9
C1A Insert thickness Pos. A
3.97 mm
CCONMS Connection count machine side
1
CICT Cutting item count
4
COMPC Company code
SO - SECO Tools
D1A Corner radius Pos. A
0.5 mm
DC Cutting diameter
50.04 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
58.92 mm
Delivery state valid from
3/14/2020
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
4
FamilyProducts
R217.43-02.00-R8-05
GAMF Rake angle radial
5 Degree
GAMP Rake angle axial
15 Degree
HAND Cutting direction
R - Right
ID Technical product number
00087687
Interface codes
/ J61
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
BRP01R09488h$07
ISYC Subclass
307-02 - Non-centre cutting single row V-groove end mill
KAPR Tool cutting edge angle
43 Degree
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
BRP Bridge-Port mounting
LOC-03 DCONMS Diameter
24.1 mm
LOC-03 ISO
BRP01R09488h$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LPR Protruding length
48 mm
LS Shank length
104 mm
Name Identifying order number
R217.43-02.00-R8-05
OAL Overall length
153 mm
RPMX Rotational speed maximum
15800 1/min
Working process
No working processes available
WT Weight of item
1 kg
ZEFP Peripheral effective cutting edge count
4
