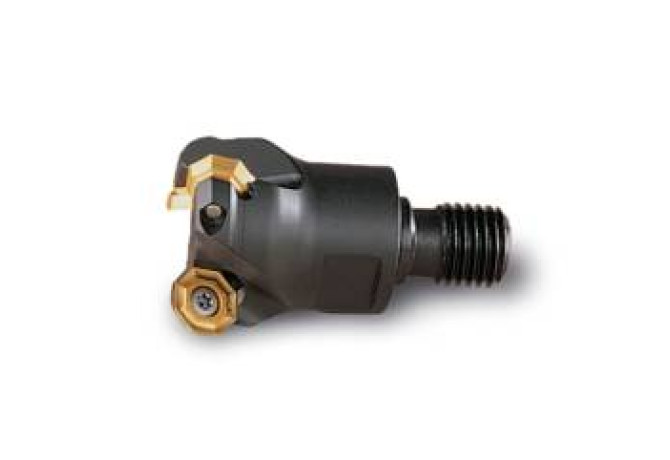

R217.43-01.25-3-05A

R217.43-01.25-3-05A

Seco
Артикул: 00087684
В наличии
В корзину
Характеристики

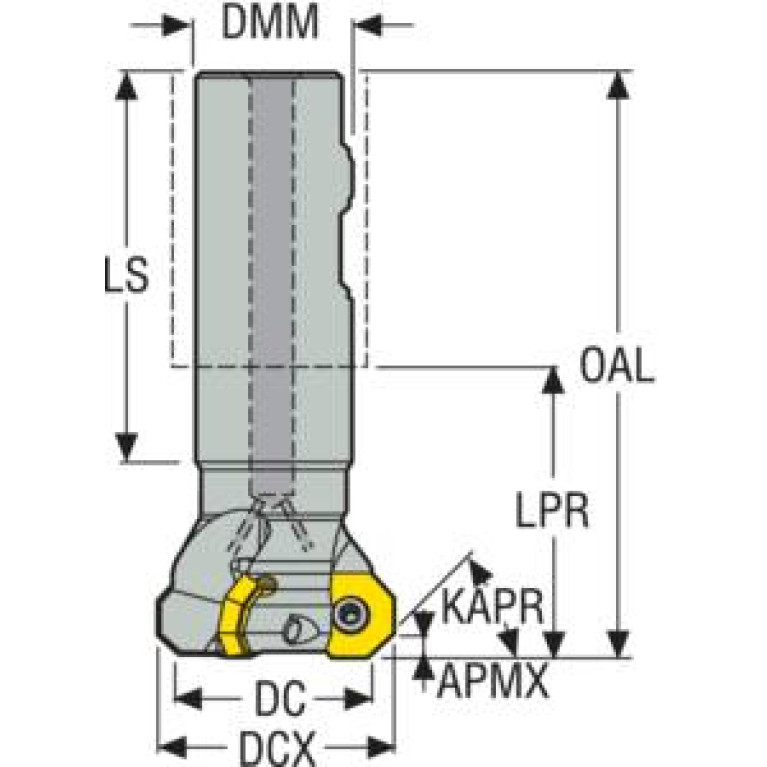

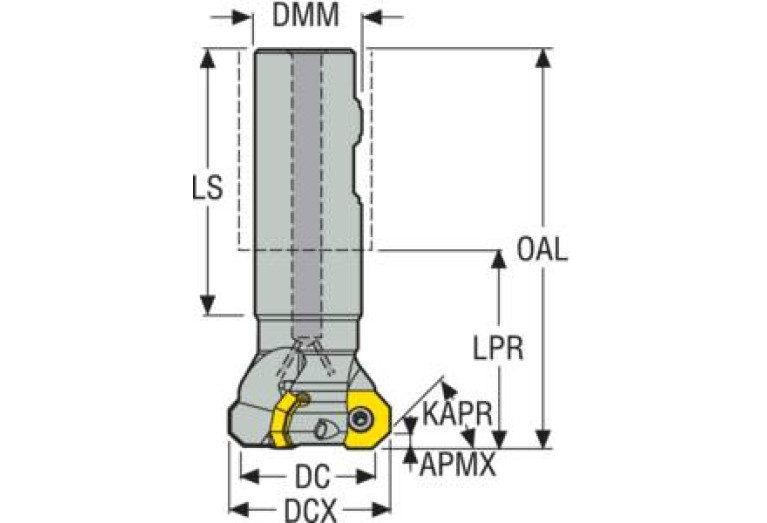

A1A Cutting edge angle major Pos. A
135 Degree
A2A Clearance angle major Pos. A
26 Degree
APMX Depth of cut maximum
3.5 mm
B1A Cutting edge length Pos. A
5.2951 mm
B3A Inscribed circle diameter Pos. A
12.79 mm
BLDA Tool style code Position A
9
C1A Insert thickness Pos. A
3.97 mm
CCONMS Connection count machine side
2
CICT Cutting item count
3
COMPC Company code
SO - SECO Tools
D1A Corner radius Pos. A
0.5 mm
DC Cutting diameter
32 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
40.89 mm
Delivery state valid from
3/14/2020
DIN
ZYL10001025
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
R217.43-01.25-3-05A
GAMF Rake angle radial
5 Degree
GAMP Rake angle axial
15 Degree
HAND Cutting direction
R - Right
ID Technical product number
00087684
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
ZYL10S1000h$06
ISYC Subclass
307-02 - Non-centre cutting single row V-groove end mill
KAPR Tool cutting edge angle
43 Degree
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03 ISO
ZYL10S1000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL10001025
LPR Protruding length
40 mm
LS Shank length
62 mm
Name Identifying order number

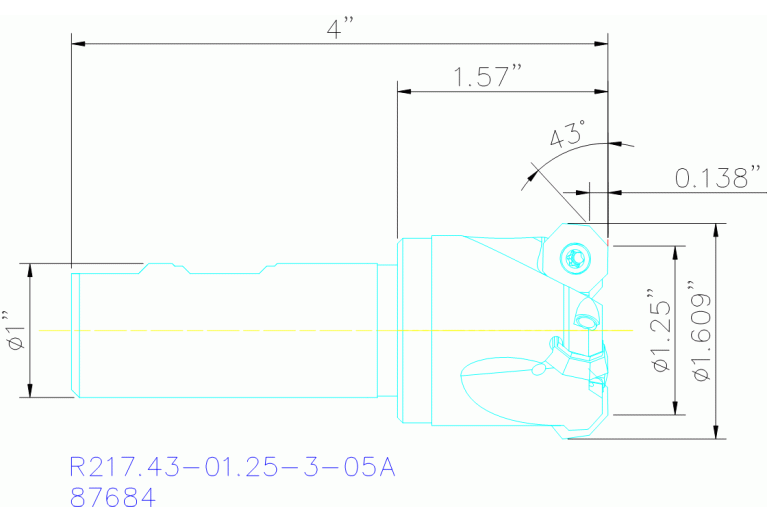

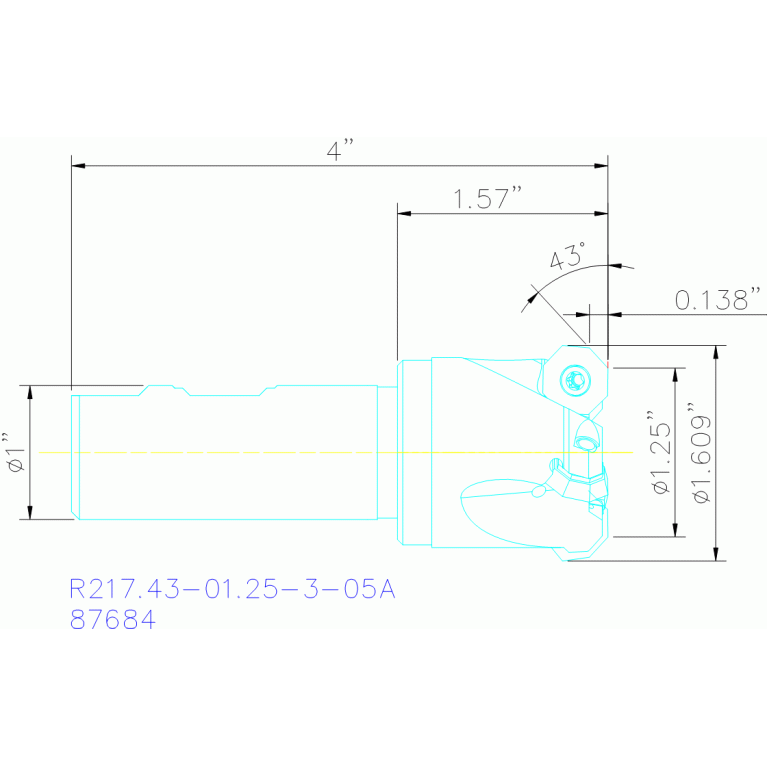

R217.43-01.25-3-05A
OAL Overall length
102 mm
RPMX Rotational speed maximum
19800 1/min
Working process
No working processes available
WT Weight of item
0.5 kg
ZEFP Peripheral effective cutting edge count
3
