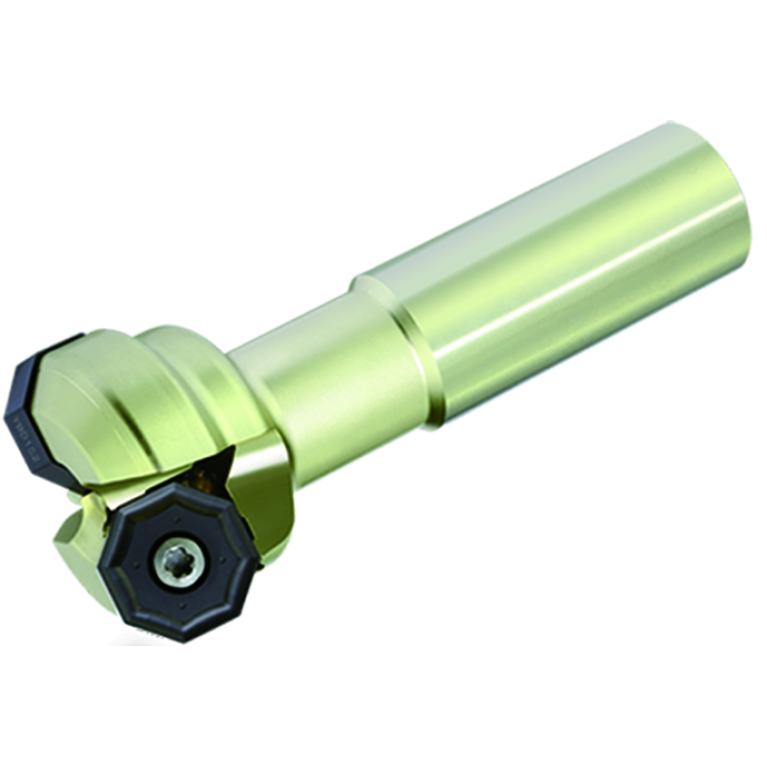

FMA07-025-XP20-ON06-02C

Артикул: FMA07-025-XP20-ON06-02C

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

135 Degree

A2A Clearance angle major Pos. A

0 Degree

APMX Depth of cut maximum

6 mm

B1A Cutting edge length Pos. A

6.58 mm

B3A Inscribed circle diameter Pos. A

15.875 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

4.76 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.8 mm

DC Cutting diameter

25 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

37 mm

Delivery state valid from

2.2 kg

DIN

ZYL02001015

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Face mill

HAND Cutting direction

R - Right

ID Identifying order number

FMA07-025-XP20-ON06-02C

Interface codes

J6 /

ISYC Subclass

307-02 - Non-centre cutting single row V-groove end mill

KAPR Tool cutting edge angle

45 Degree

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02001015

LPR Protruding length

45 mm

LU Usable length

4 mm

OAL Overall length

95 mm

Working process

FDR - Rotary milling, turn milling,FPL - Face milling,FRU - Round moulding

WT Weight of item

0.2 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
