Главная Каталог продукции Toolunited 17 307-02 - Non-centre cutting single row V-groove end mill FF EWX D25-3-060-C25-05

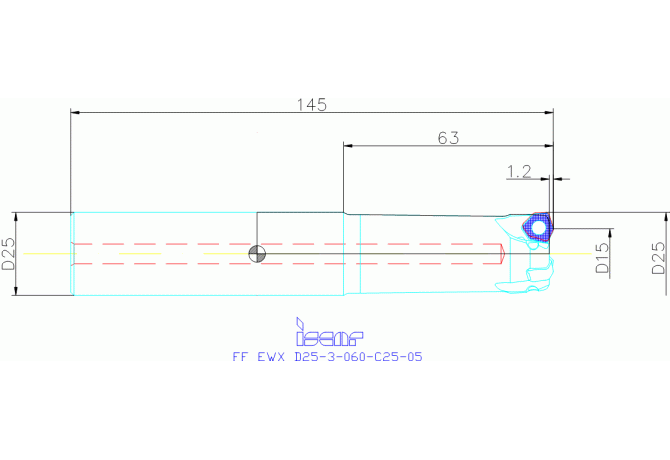

FF EWX D25-3-060-C25-05

Артикул: 3105521

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

1 mm

BD Body diameter

23.6 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

15 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

25 mm

DIN

ZYL02500115

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Fast Feed Endmills Carrying Double-Sided Inserts with 6 Cutting Edges

HAND Cutting direction

R - Right

ID Technical product number

3105521

Interface codes

J6 / J61

ISO

ZYL01G2500h$06

ISYC Subclass

307-02 - Non-centre cutting single row V-groove end mill

KAPR Tool cutting edge angle

17 Degree

LF Functional length

145 mm

LH Head length

63 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G2500h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02500115

LPR Protruding length

89 mm

LU Usable length

60 mm

Name Identifying order number

FF EWX D25-3-060-C25-05

OAL Overall length

145 mm

RMPX Ramping angle maximum

5 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.47 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
