Главная Каталог продукции Toolunited 17 307-02 - Non-centre cutting single row V-groove end mill FF EWX D16-2-MMT10-04

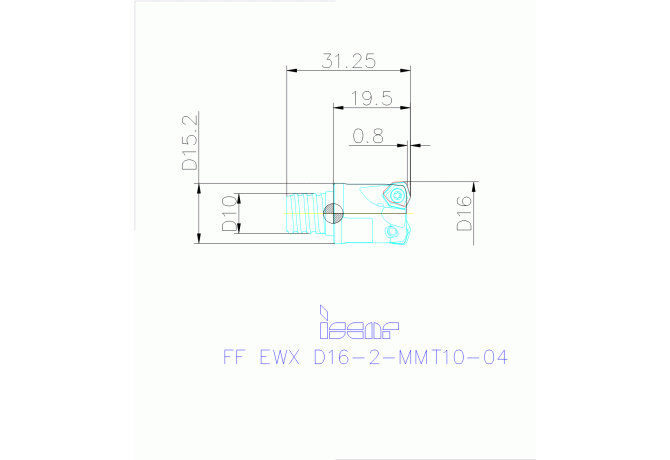

FF EWX D16-2-MMT10-04

Артикул: 3105624

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

0.8 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

8.6 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

16 mm

DIN

SAI01000195

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Fast Feed Endmills with MULTI-MASTER Threaded Connection Carrying Double-Sided Inserts with 6 Cutting Edges

HAND Cutting direction

R - Right

ID Technical product number

3105624

Interface codes

J6 / J61

ISO

SAI01C0100$$$$

ISYC Subclass

307-02 - Non-centre cutting single row V-groove end mill

KAPR Tool cutting edge angle

17 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

15.2 mm

LOC-03 ISO

SAI01C0100$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI01000195

Name Identifying order number

FF EWX D16-2-MMT10-04

OAL Overall length

31.25 mm

RMPX Ramping angle maximum

5 Degree

THSZMS Connection thread nominal size machine side

T10

Working process

No working processes available

WT Weight of item

0.02 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
