Главная Каталог продукции Toolunited 17 307-07 - Non-centre cutting multiple rows end mill T490 LNK D50-62-3-W40-16

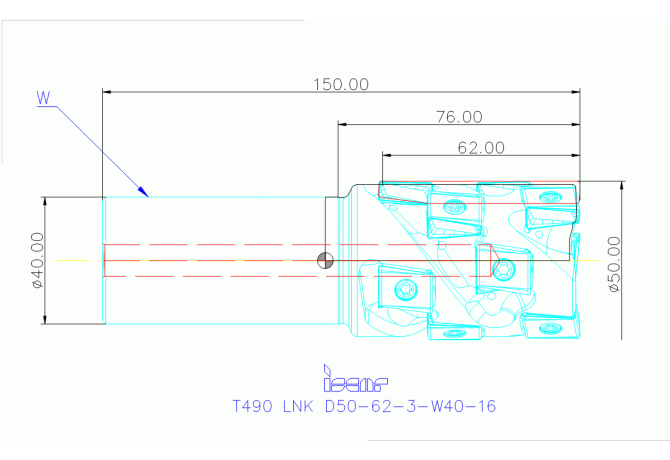

T490 LNK D50-62-3-W40-16

T490 LNK D50-62-3-W40-16 T490 LNK D50-62-3-W40-16

T490 LNK D50-62-3-W40-16

Iscar
Артикул: 3104946
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A1B Cutting edge angle major Pos. B
90 Degree
A2A Clearance angle major Pos. A
0 Degree
A2B Clearance angle major Pos. B
0 Degree
APMX Depth of cut maximum
62 mm
B1A Cutting edge length Pos. A
17.05 mm
B1B Cutting edge length Pos. B
17.05 mm
B2A Insert width Pos. A
7 mm
B2B Insert width Pos. B
7 mm
B3A Inscribed circle diameter Pos. A
7 mm
B3B Inscribed circle diameter Pos. B
7 mm
BLDA Tool style code Position A
4
BLDB Tool style code Position B
4
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
15.9 mm
C1B Insert thickness Pos. B
15.9 mm
CCONMS Connection count machine side
2
CICT Cutting item count
12
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
2 - With Coolant exit, radial
D1A Corner radius Pos. A
0.8 mm
D1B Corner radius Pos. B
0.8 mm
DC Cutting diameter
50 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
2/2/2018
DIN
ZYL04001015
FamilyProducts
Extended Flute Endmills with T490 LNMT/HT 16... Tangentially Clamped Inserts
HAND Cutting direction
R - Right
ID Technical product number
3104946
Interface codes
J6 / J61
ISO
ZYL10G4000h$06
ISYC Subclass
307-07 - Non-centre cutting multiple rows end mill
KAPR Tool cutting edge angle
90 Degree
LH Head length
76 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03 ISO
ZYL10G4000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04001015
Name Identifying order number
T490 LNK D50-62-3-W40-16
OAL Overall length
150 mm
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
No working processes available
WT Weight of item
1.37 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
